1. Single shaft shredder

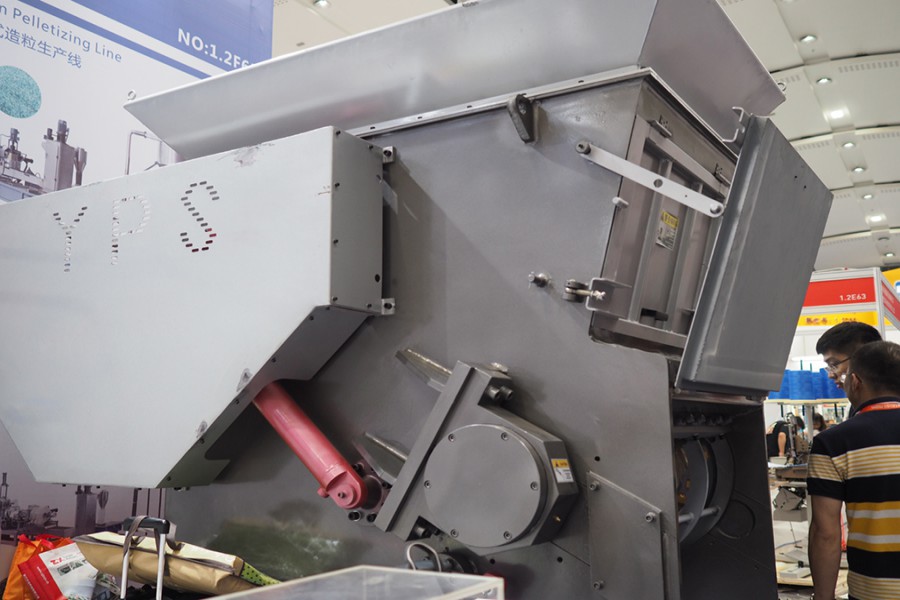

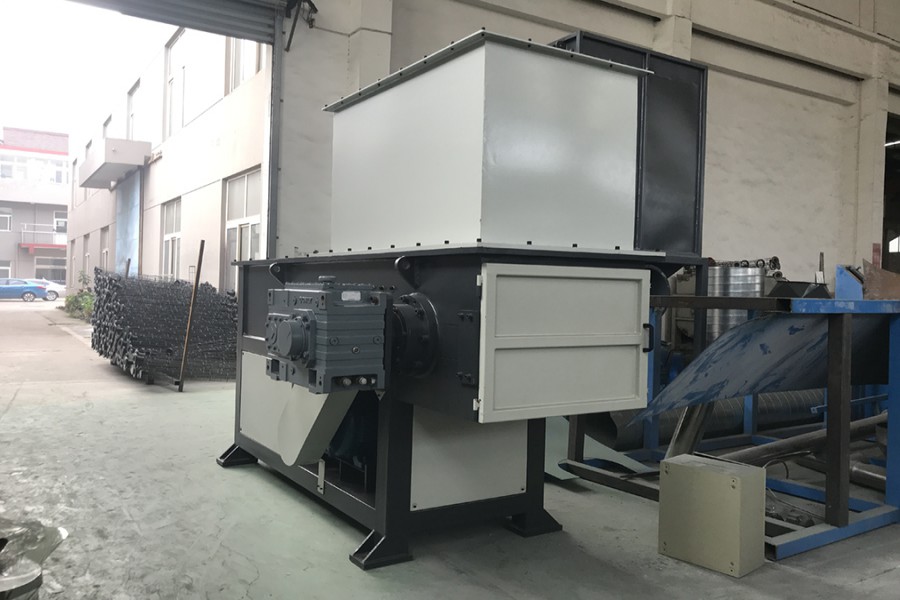

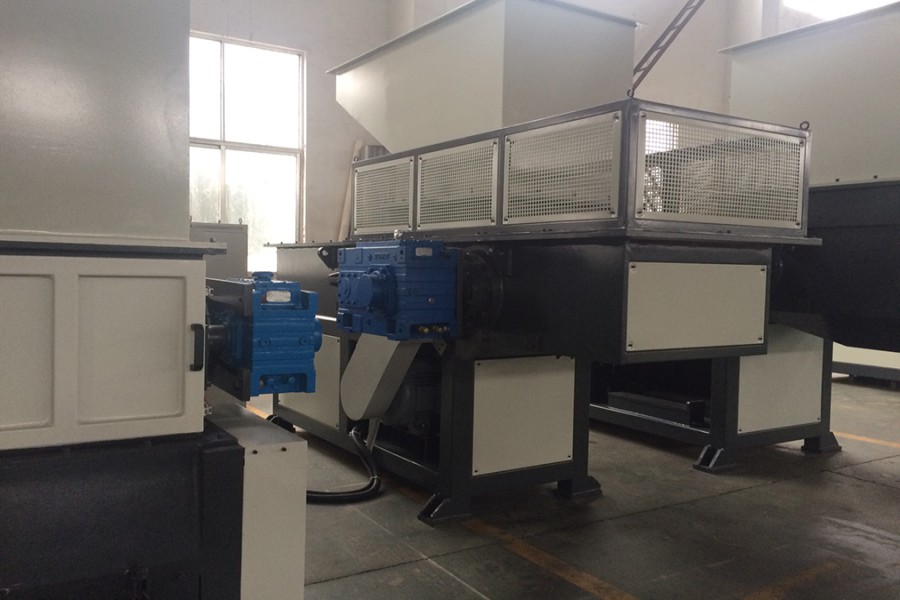

SS series Single Shaft shredders are a kind of heavy duty size reduction machines which are capable for shredding a large range of materials such as plastics, woods,textiles,tires,cardboard,packed fibers,film in rolls ect. These models machines are specially designed for varies thick material like plastic blocks,lumps,polymer pipes, household plastics ect.

Except Typical type Single shaft shredder, Beakeland supply the following types:.

1. Swing arm type Single shaft shredder (new)

2. Moving Hopper Single shaft shredder

3. SS Typical type

Features:

The shredder rotation speed of main rotor ranges from 60~100rpm unlike the granulators with spin in high speed. They could working gentle even when process really rough pieces.

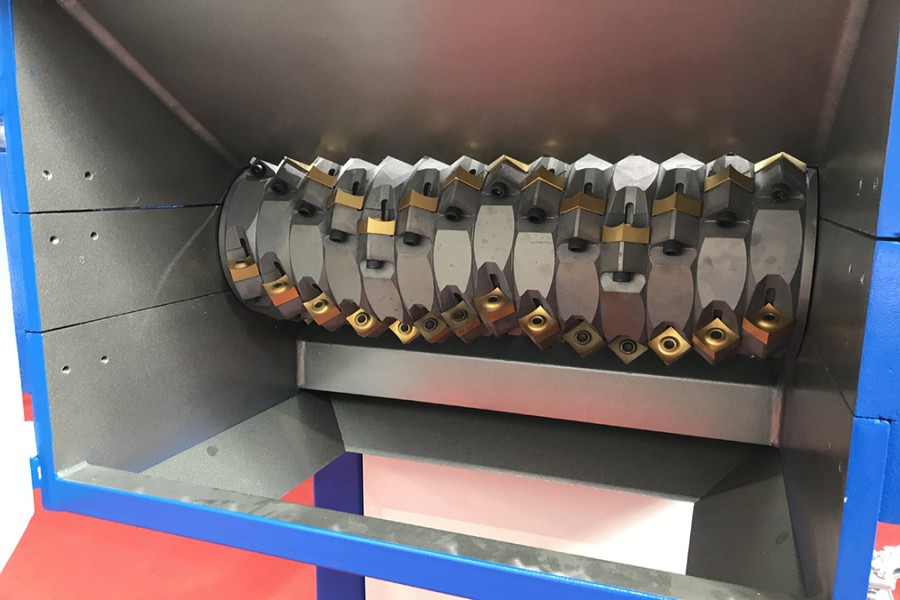

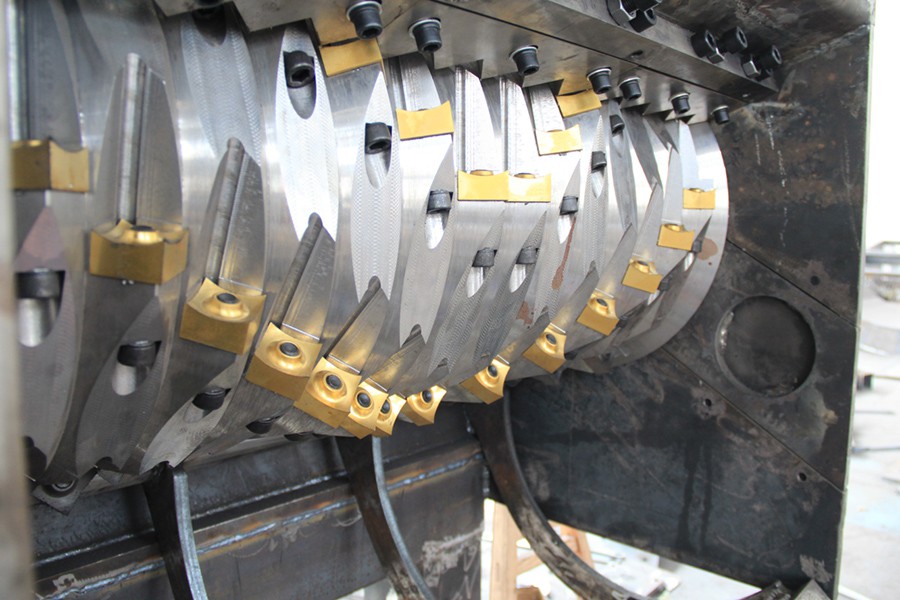

Long life knives used. The unique designed square knives are bolted on the strong rotor and the jagged teeth knife installed in front side of the cut chamber  stationary knife which are the key parts for cut off all the feeded materials.Square knives has four edges could be change before replacement.

High quality gearbox used on driving system.

High thickness steel used on sturcture and frame for enhancing the stability of equipment.

The PLC controlled hydraulic pusher forces material to the rotor automatically.

The screen filter sizes ranges for varies material particle size control.

Easy for operation maintainence

Typical type Single shaft shredder models&specification:

Swing arm type Single shaft shredder models&specification：
