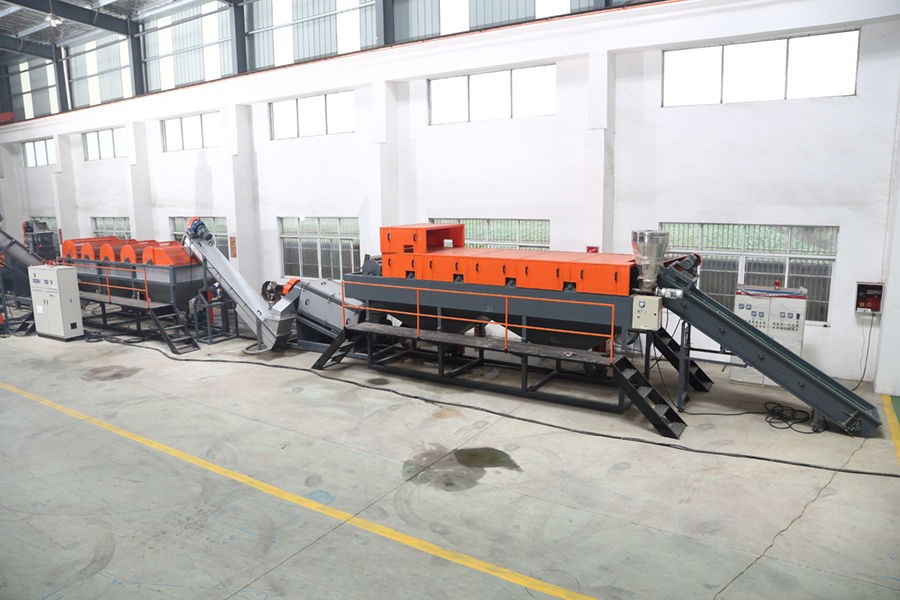

PE PP recycling and washing line could roughly divided to PP PE film recycling washing line and PP PE rigid plastics recycling washing line.
1. PP PE film washing recycling line is mainly used for process materials such as PE waste film, LDPE (LLDPE) film 98/99,PE Mulch film, PE Agricultural film, PE shopping bags,garbage bags, PP raffia bags,woven bags,PP Ton bag, PP non-woven film,bags and related wastes from varies source. The complete recycling washing machine line could turn collected dirty polyethylene and polypropylene films,post-consumer bags to clean and dry film pieces which could be used for further pelletizing. Main processing steps include: Crushing-Washing-Drying-Packing.
2.PP PE rigid plastics recycling washing line is mainly used for process rigid PP PE (HDPE) wastes in varies products forms of daily life like milk bottles,detergent bottles,shampoo bottles,barrel,bucket,creates,containers,vaires profiles ect. It could turn wastes to clean scraps ,flakes for further pelletizing.Main processing steps include: Crushing-Washing-Drying-Packing.
Features and advantage of above plastic crushing washing drying recycling line:
1.Simple and reasonable design machine structure,easy for operation and maintenance.
2.Excellent washing ability,High capacity and High automation control level,labor cost saving and energy saving could be realized.
Capacity ranges: 200-3000kg/h
3.Low Moisture contents of final products. Film normally keeps at 5-8%. Rigid plastics keeps at 1-2%.
4.Final material particle size: film 40-100mm(customized), rigids: 10-20mm(customized).
5. Electrical components are all famous brand in China and abroad.(customized)
6.Washing machine Parts which contact material use SUS304 with high thickness to ensure long service lift time
7. Production line could be displayed “L” or “U’ shape according to customer’s workshop.
Main components:
No. | Machine name | Function |
1 | Belt conveyor | For waste material feeding automatically. |
2 | Shredder | For material size reduction. Single shaft shredder & Double shaft shredder could be all choosed as per different plant's needs. |

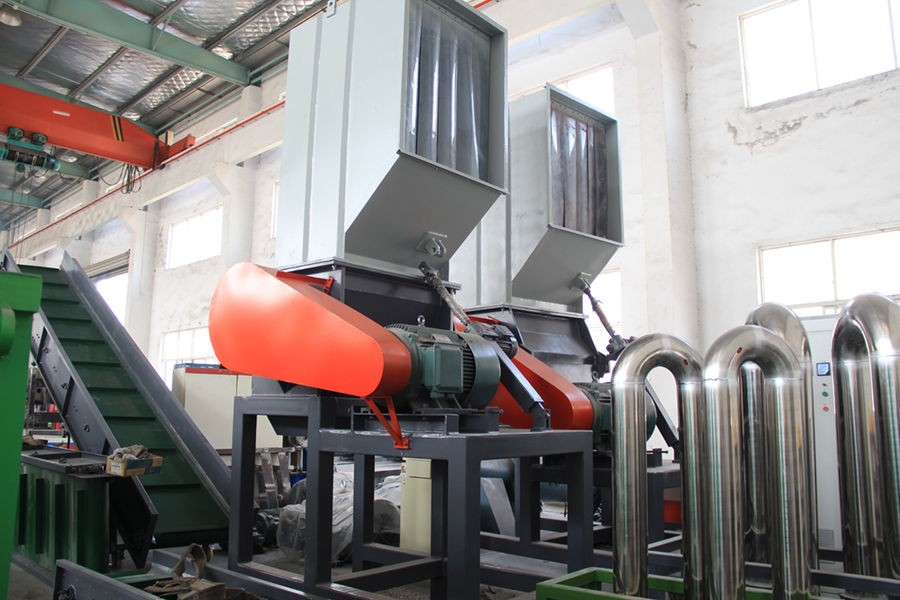

3 | Crusher/Granulator | Wet crushing system.It used for material size reduction and pre-washing. |
4 | Low speed friction washer | For material conveying to next washing steps. 720rpm rotating speed could pre-washing the material with a good effect. |
5 | Screw loader | For material conveying to next stage. |

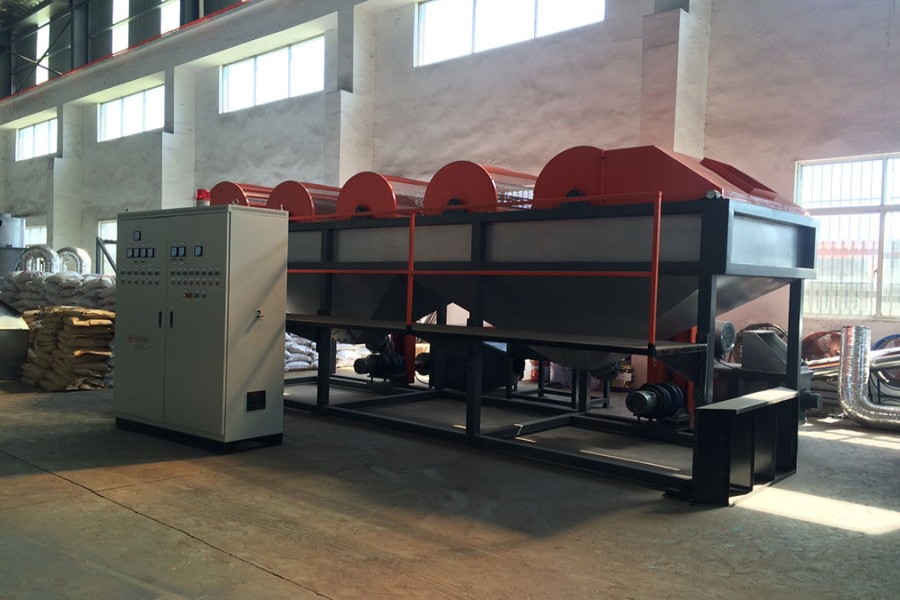

6 | Sink & Float separation tank | for impurities precipitating separation and wash the material more clean. |

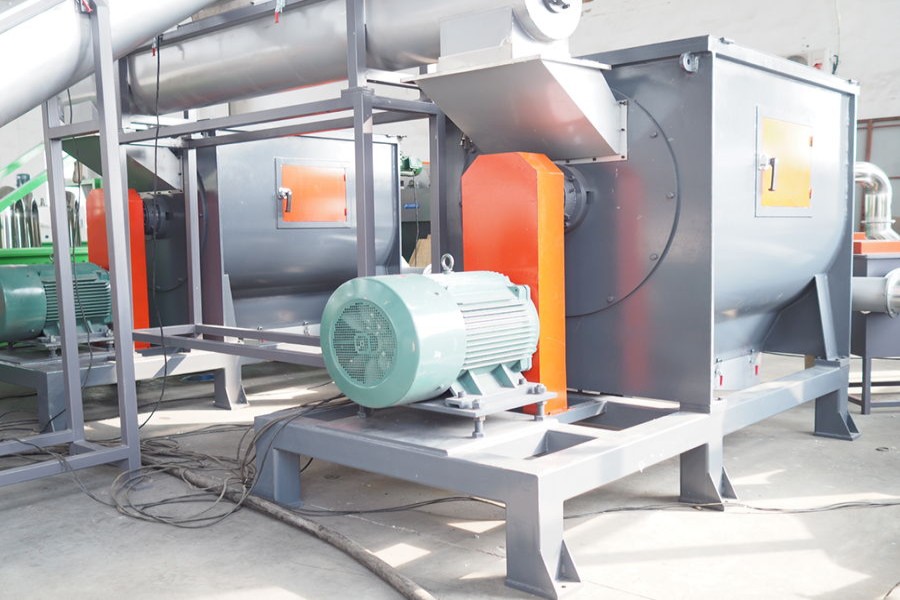

7 | High speed Friction washer( Scrub washing machine) | It could achieve a good cleaning effects through the blades on the beating and spray. This machine is suitable for broken film and Plastic flakes washing.
|
8 | Dewatering machine(Centrifugal dryer) | This machine is mainly used for the cleaning of waste plastic after mechanical dewatering and drying, the spindle through high speed rotating threw the plastic and water to the screen, water releases by screen, while the plastic is from the outlet to be out of the machine enters into the next procedure. The machine has a good drying effect and high energy efficiency. The blade is made of high wear-resistant materials, can be replaced more conveniently. |

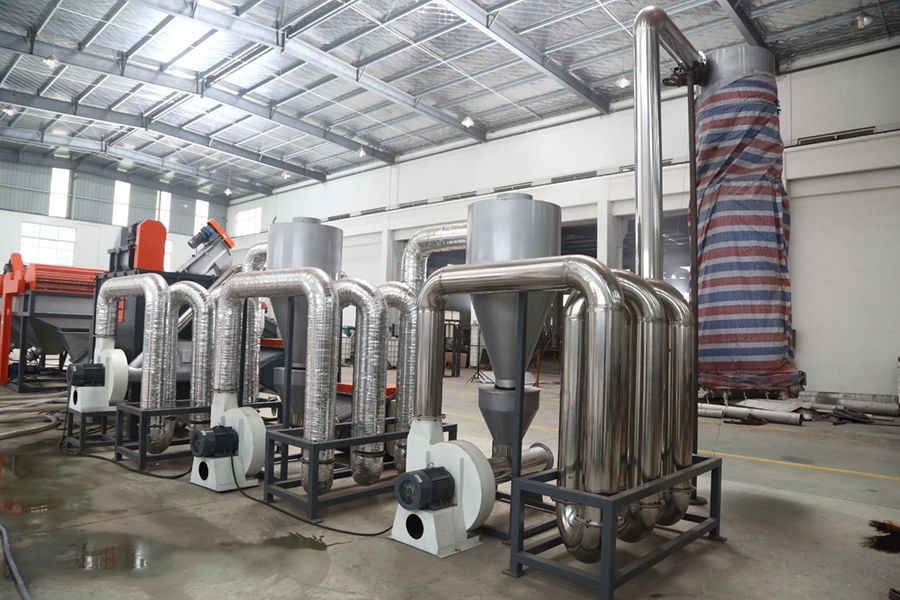

9 | Hot air drying system | For further material drying and transportation to final packing system |
10 | Film Squeezer dryer | Replace the traditional centrifugal dryer above.It could turn washed film to granulas pieces directly which could increase pelletizing capacity further. |
11 | Storage silo | For material packing |
12 | Electrical control cabinet | Electrical parts brand customized. |
After discussion with our customers, Beakeland will provide proposals and different washing solutions accordingly to customers’ requirements.
Customers are warmly welcomed and encouraged to visit our factory to check machines in operation.
Any more detailes you need, please feel free to contact with us.
