High-speed friction washer

High-speed friction washer

In a plastic recycling line, a high-speed friction washer is the machine that scrubs dirt, labels, glue and oil off plastic flake by rubbing the material against itself and against the machine wall at speed, under a continuous spray of water. It is a mechanical cleaner, not a chemical one, and that distinction is the whole reason it earns its place in a washing line.

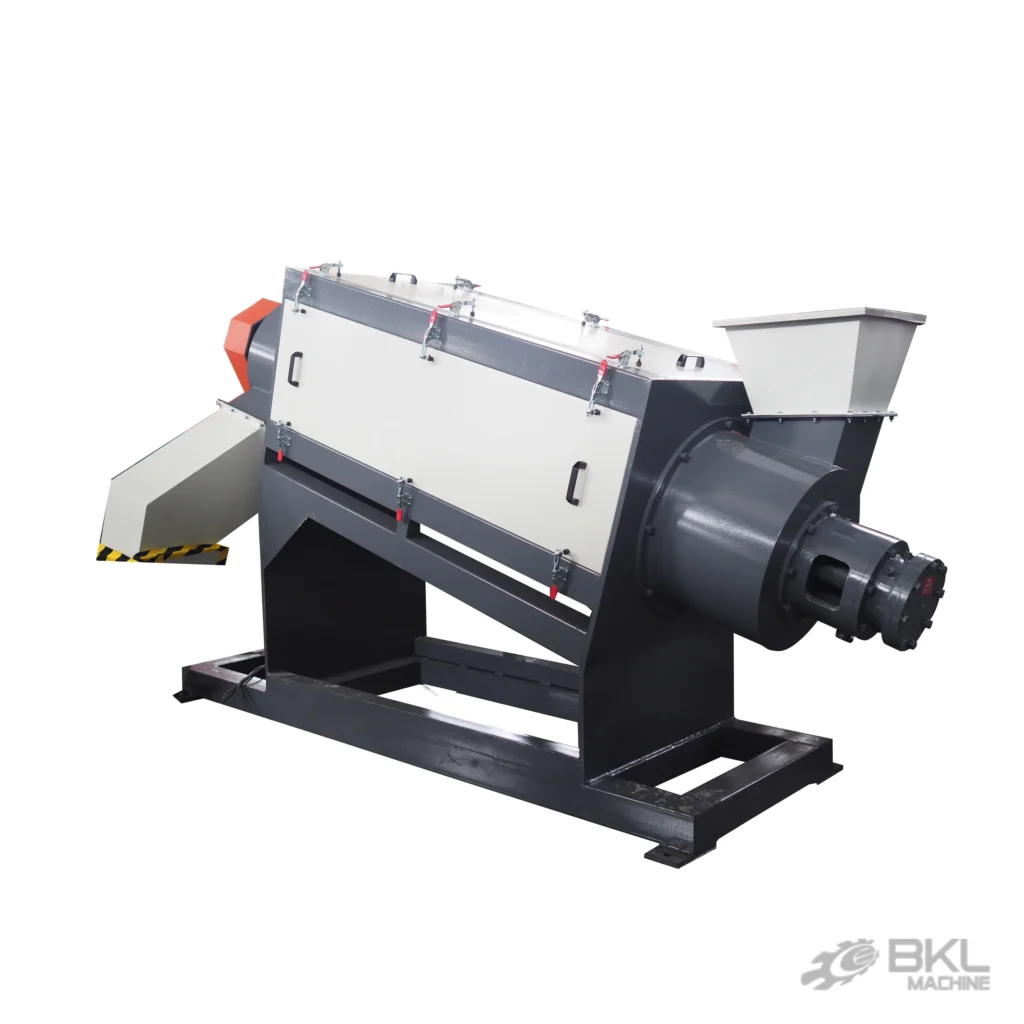

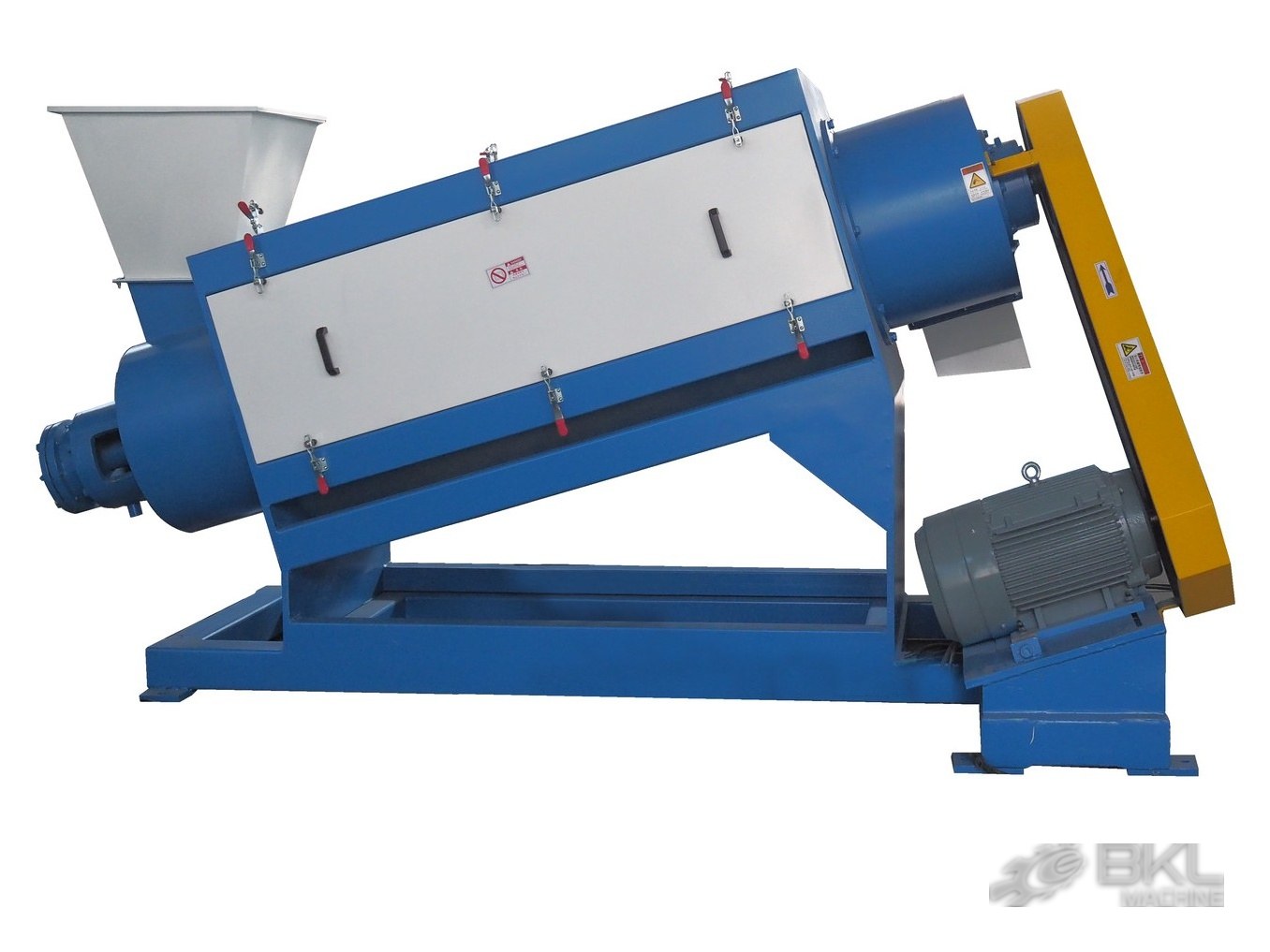

This unit is installed at an inclination angle of 20° to 30° relative to the ground and runs a shaft and paddles at 720–1200 rpm. Below: what the angle is actually for, why every model in the range turns at the same speed, and the one design detail on this machine that decides how long it lasts.

Friction does the work that chemistry should not have to

A washing line has two ways to get contamination off plastic: rub it off, or dissolve it off. They cost very different amounts to run.

Rubbing costs the electricity to turn a shaft and the water to flush the loosened dirt away. Dissolving costs heat, caustic, and the treatment of what comes out the other end. A high-speed friction washer takes as much of the load as mechanical action can, so the hot chemical stage only has to deal with what is genuinely bonded on — adhesive residue, oil films, the things friction cannot reach.

Get this order wrong and the chemical stage does mechanical work at chemical prices. That is why on most lines the friction washer sits ahead of the hot tank rather than after it.

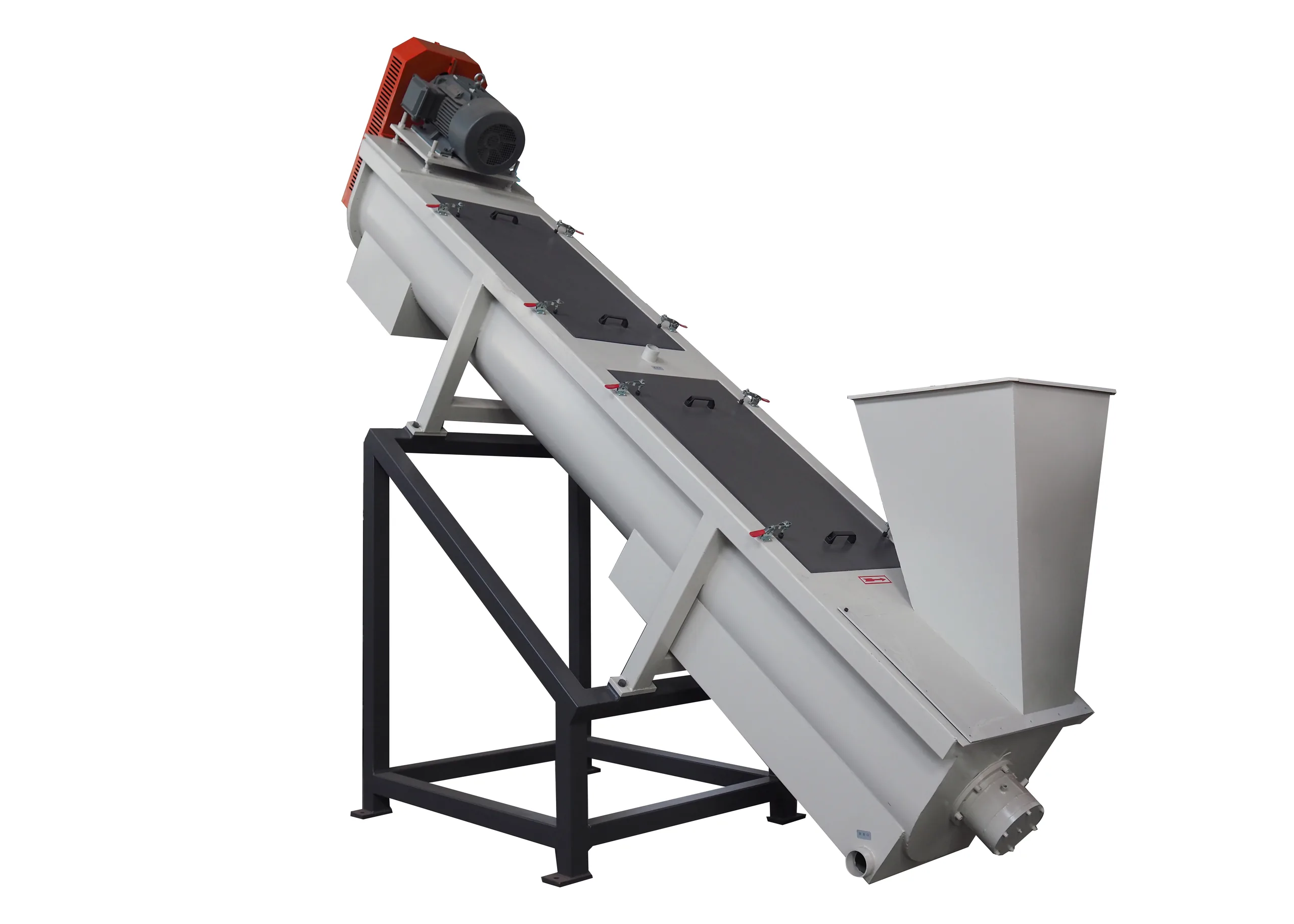

The 20°–30° angle is doing two jobs at once

The inclination is easy to read as a mounting detail. It is not — it is what lets one machine occupy one position in the line and do two things.

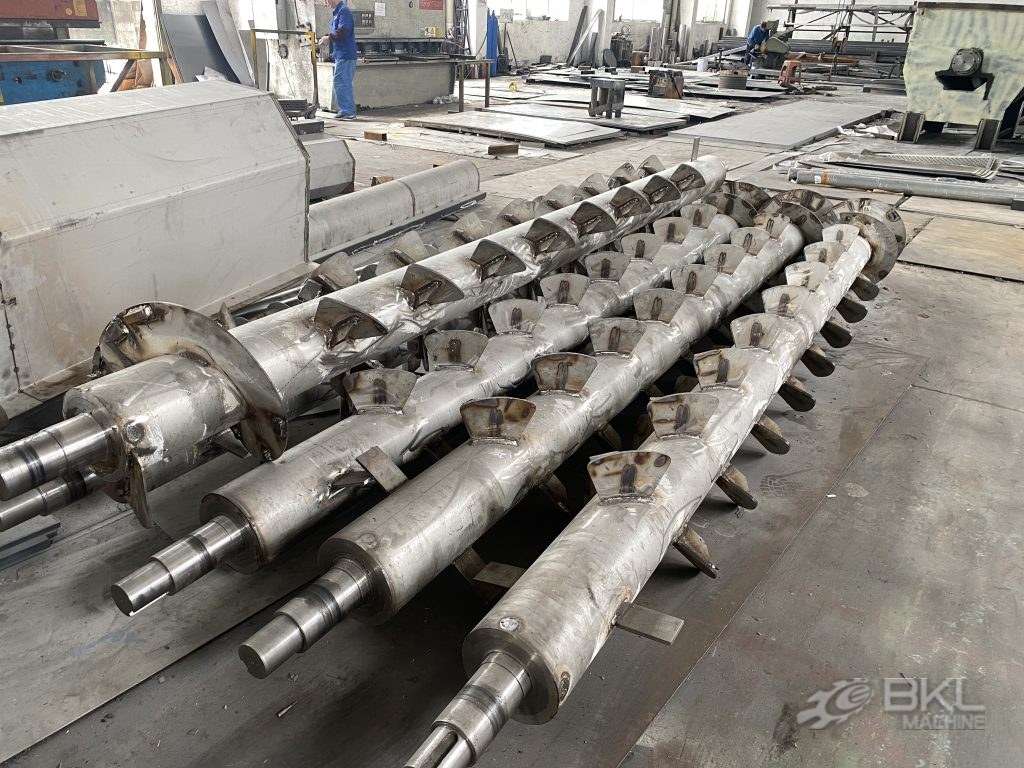

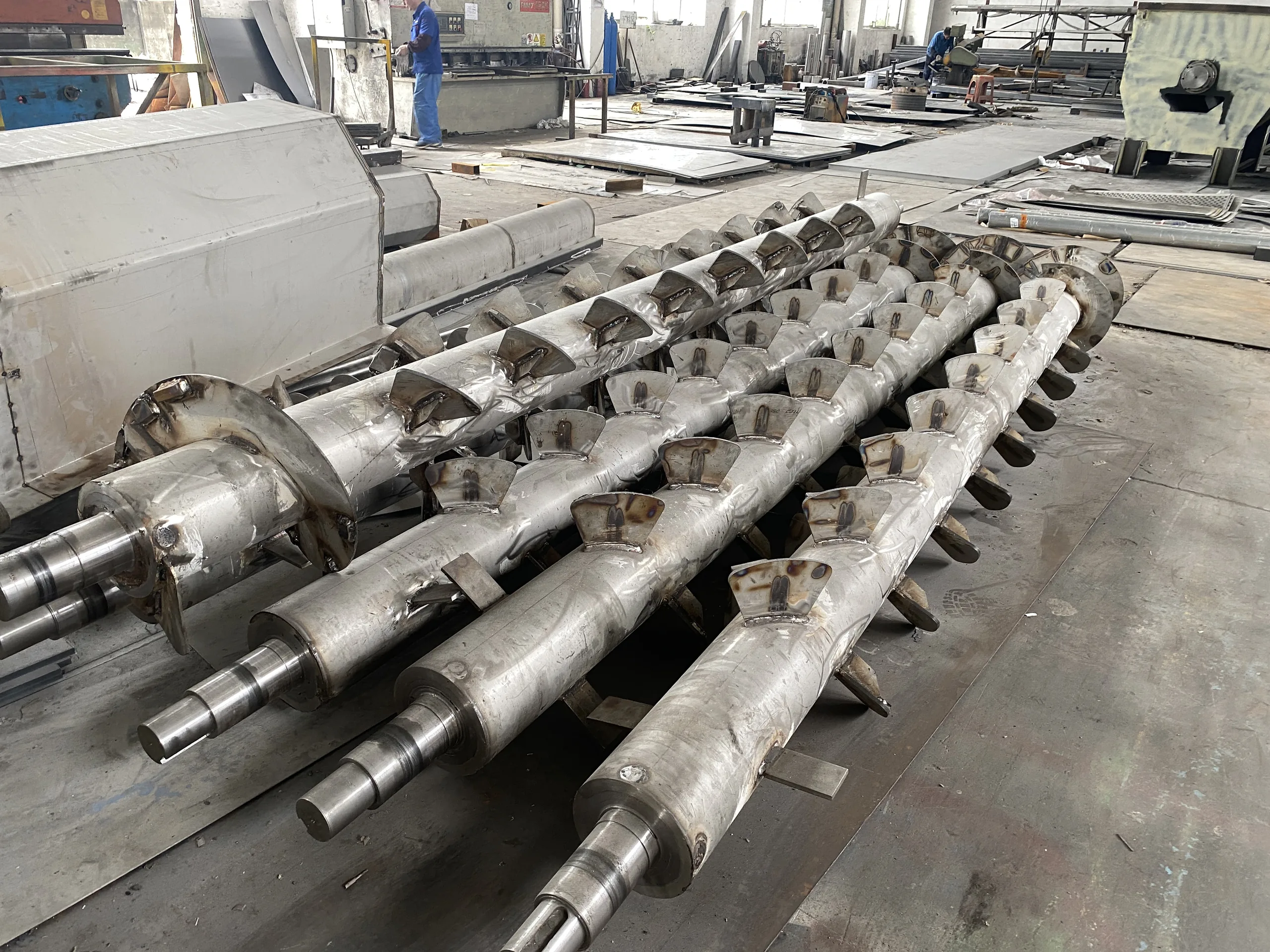

The high-speed shaft and paddles generate strong friction against the plastic for intensive cleaning. At the same time, the angle means every rotation also moves material upward and onward, conveying the cleaned flake to the subsequent processing stage. The machine is simultaneously a washer and an elevator.

That matters practically, because the alternative is a washer plus a separate conveyor: two machines, two drives, two more transfer points where wet flake can hang up, and more floor length. The angle buys all of that back.

Water comes in from the top, continuously

Friction loosens contamination; it does not remove it. Something has to carry the dirt out of the machine before it gets rubbed back onto the flake, and that is what the water does.

Continuous water spray is supplied from the top to flush away dirt and contaminants as they come free. This is a flowing process rather than a soak — the machine is not a tank that fills and empties, it is a tube with material going up it and dirty water going down.

The practical consequence is that flake leaves this stage wet, by design. Water removal is the next machine’s job, not this one’s.

Same speed, three diameters: how to read the HSW range

There is a detail in the specification table that tells you how this range is designed, and it is easy to miss because it looks like a repeated value.

All three models turn at 720–1200 rpm. The speed does not change as the machines get bigger. What changes is rotor diameter — 350 mm, 450 mm, 650 mm — and the motor needed to turn it.

Since rpm is held constant, a larger rotor necessarily has a higher peripheral speed at the same setting: the 650 mm rotor’s tip travels roughly 1.9 times as far per revolution as the 350 mm rotor’s. Scrubbing action comes from that relative speed between paddle and material. So the larger machines in this range are not simply higher-capacity versions of the smaller ones running the same duty — at the same rpm setting they also scrub harder.

The corollary is that rpm is a real process control, not a nameplate figure. The 720–1200 rpm band exists so the same machine can be run gently on material that damages easily and hard on material that is heavily soiled.

Three models

Each model is offered with two motor ratings. The higher rating is what you specify when the material is heavy, densely packed or heavily contaminated — the rotor has to keep its speed under load, and a motor sized for clean flake will not hold 1200 rpm through a slug of soiled material.

The bearing seal is the part that decides service life

This is the detail worth asking every supplier about, because it is where a machine like this fails.

A friction washer runs a shaft at up to 1200 rpm inside a tube that is deliberately kept full of water and abrasive dirt. Bearings and water are a short relationship. On this machine the bearing housings feature superior sealing performance and stay completely isolated from water, which is what extends service life.

Two machines with identical rotor diameters and identical motors can have very different lifetimes, and the difference is usually here rather than anywhere in the specification table. It is worth confirming on any comparison you are running.

The horizontal variant, for paper labels

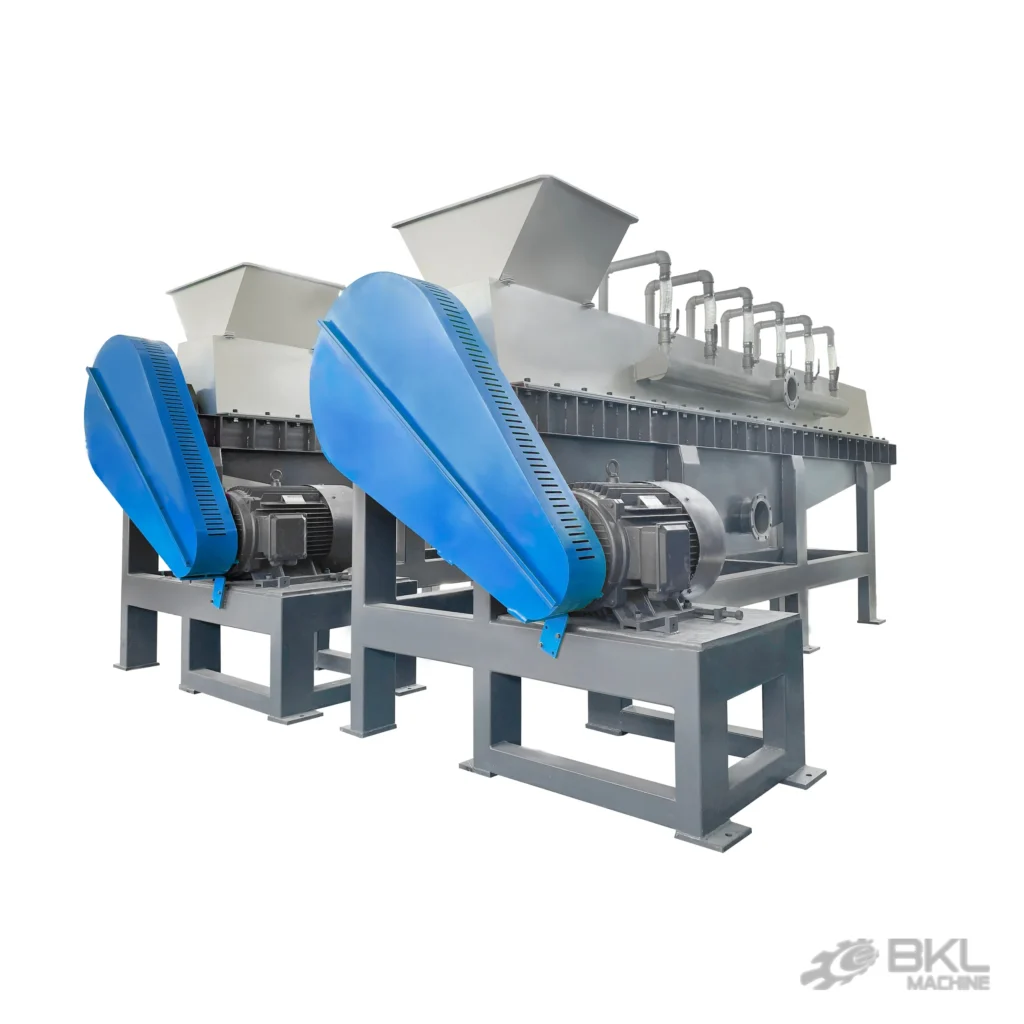

Alongside the inclined machines described above, heavy-duty horizontal friction washers are also supplied, specially designed to rub off paper labels attached to plastic surfaces, delivering outstanding cleaning efficiency.

The reason label removal gets its own machine is that a paper label is not dirt. Dirt comes off a surface; a label is a bonded layer that has to be abraded away and then separated from the flake, and it takes sustained rubbing to do it. A horizontal machine gives dwell time without fighting gravity, so the material stays in contact with the paddles longer than it would climbing a 30° incline.

If your feedstock is labelled bottles or printed containers, this is a different specification conversation from general friction washing.

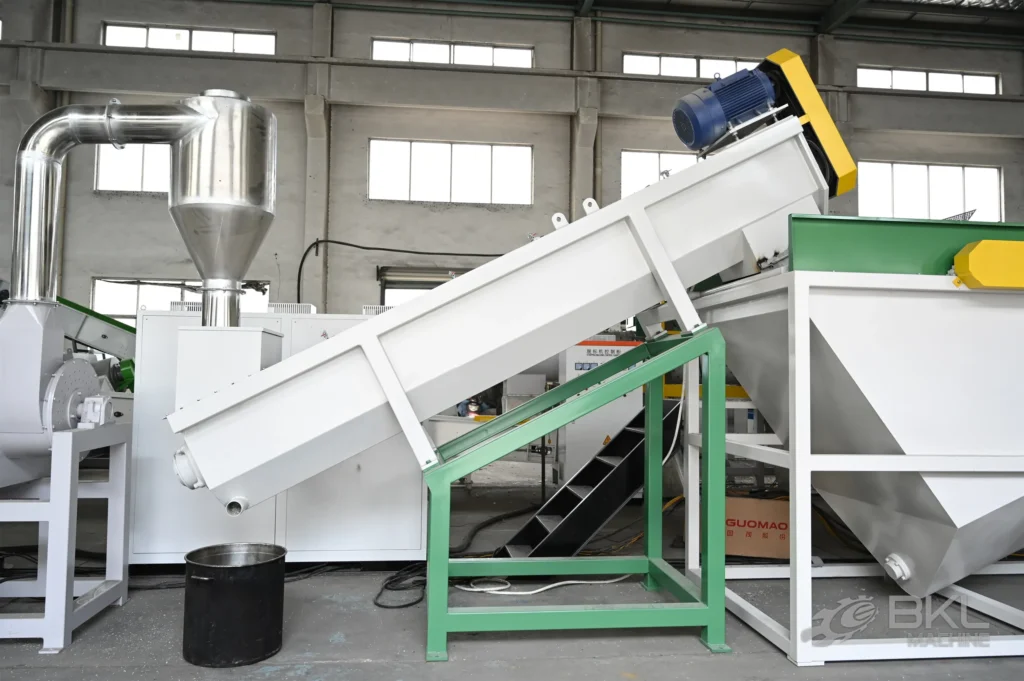

Where it sits in the washing line

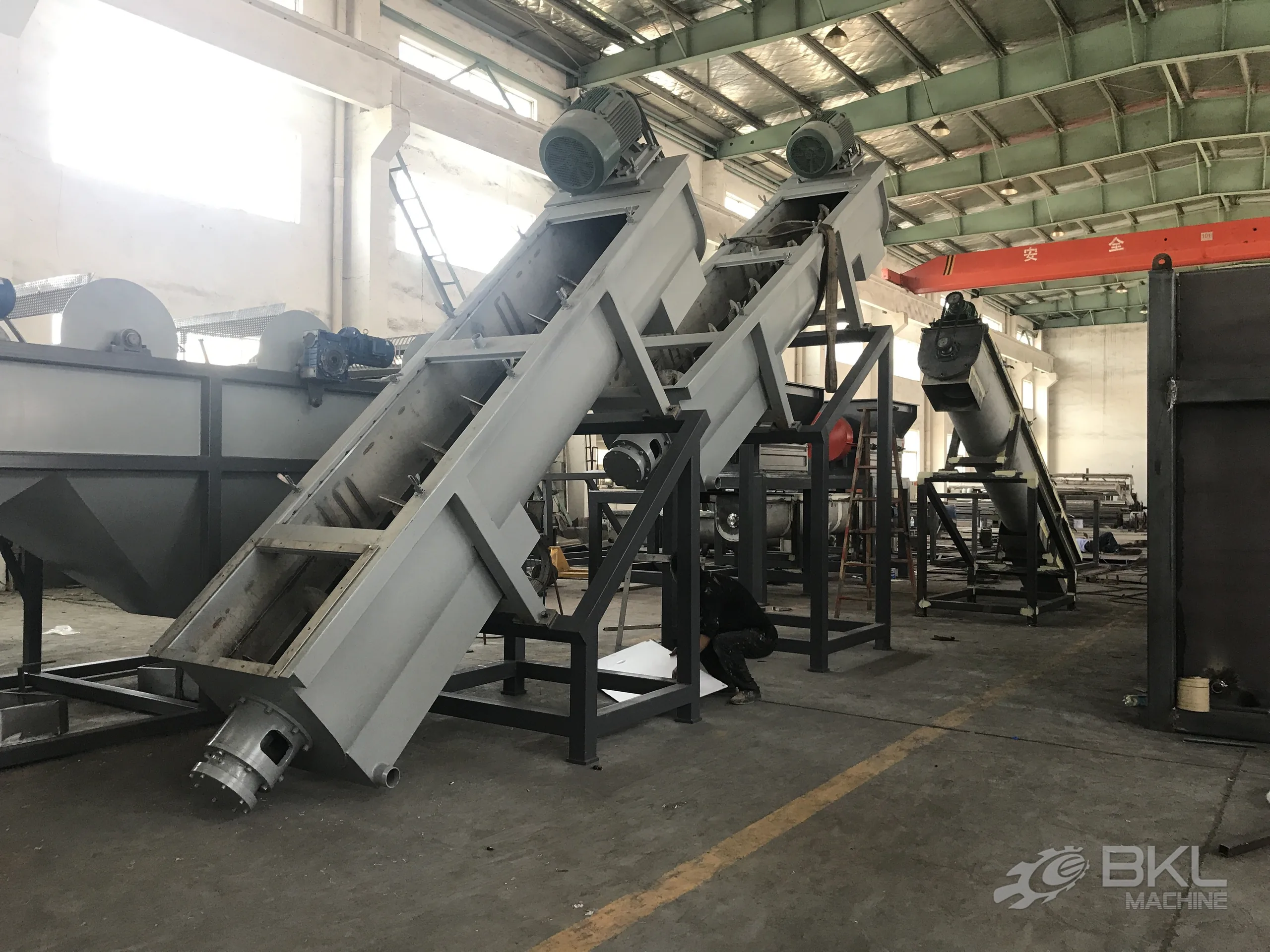

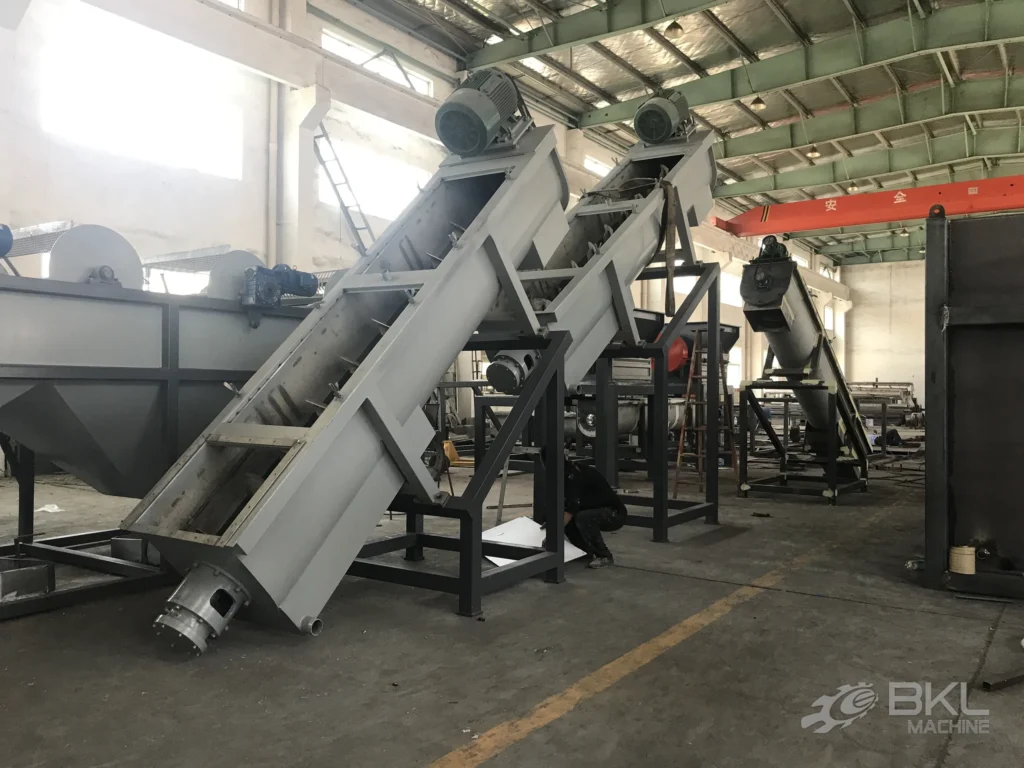

The friction washer takes material after size reduction and before or between the wet stages, handing cleaned flake upward to whatever comes next — a sink-float tank, a hot wash tank, a rinse stage, or a dewatering machine. Lines commonly run more than one, at different points and sometimes at different speeds, because the cleaning job at the start of a line and the final polish before drying are not the same duty.

What it does not do is separate polymers, dry material, or reduce size. It cleans surfaces and moves material. Anything else in the line is a different machine’s responsibility.
