PP Recycling and What Woven Bag Contaminants Cost

PP woven bag recycling cuts, washes and pelletizes polypropylene sacks — feed, fertiliser, cement, rice and container bags — into regrind or pellets. The polymer processes easily. The difficulty is that a woven bag is almost never only polypropylene, and every impurity in it enters from a different place in the bag’s own construction.

That is the useful way to plan a line for this material. Not by asking what PP needs, but by asking what came in with it and where it came from. Three sources account for nearly all of it: the weave itself, the fittings sewn or stuck onto the bag, and the extra layers laminated or inserted inside it. Each one is caught at a different stage, and the one that gets missed is the one that shows up in your pellet.

A Woven Bag Is Rarely Only PP

A woven sack is made from slit PP tape woven on a circular loom. That construction is what makes it strong and cheap, and it is also the root of every problem below: the bag is a textile, not a moulding, and it behaves like a textile all the way through the plant.

On top of the weave, a commercial bag typically carries stitching thread, a printed or laminated outer face, sometimes a separate liner, and often a valve, handle or fitting. Post-consumer bags then add whatever they contained. Cement bags carry set cement, fertiliser bags carry hygroscopic residue, feed bags carry organic matter that starts to smell within days of baling.

PP is a large recovered stream in its own right — it appears alongside PE in national material flow figures such as the US EPA plastics material-specific data — but woven sacks sit at the difficult end of it. The sections below take the three impurity sources in the order they cause trouble.

Source 1 — The Weave Itself: Threads, Fluff and Dust

The first contaminant a woven bag produces is the bag. Cut a sack and the tapes at the cut edge fray immediately, releasing loose filament and fine fluff. Nothing entered the plant to cause this — it is generated inside your own machine, which is why buyers who plan around external contamination are caught out by it.

Fluff does three things, all of them expensive:

It wraps. Loose filament winds around rotor shafts, screw conveyors and dryer spindles and builds up until something has to be stopped and cut free. This is the single most common cause of unplanned downtime on woven PP lines.

It floats and travels. Fine fluff and dust go with the airflow rather than with the material, ending up in the dust extraction, on the tank surface and eventually back in the product.

It absorbs and holds water. Fluff behaves like a sponge in the wash circuit, which makes the drying stages work considerably harder than the flake volume suggests.

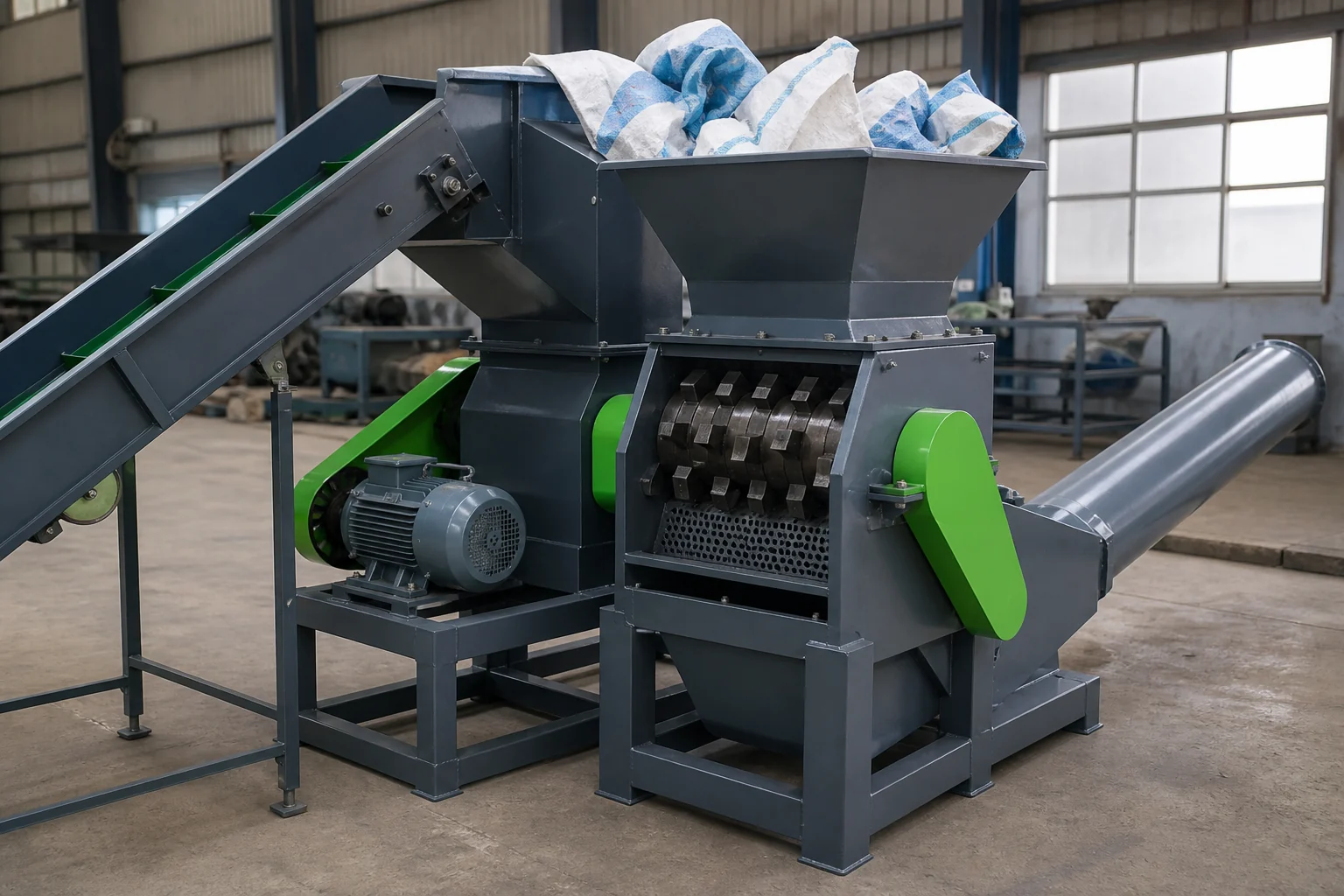

The mitigation is in how the material is cut, not in a filter added afterwards. Woven sacks are baled, bulky and prone to bridging, so size reduction uses a single-shaft shredder with a horizontal pusher running at 72 rpm against a screen: the ram forces bales onto the rotor rather than waiting for gravity, and the screen sets the output in one controlled pass instead of repeated re-cutting that generates more fluff each time. Sharp knives and correct clearance matter here more than on any rigid material — a dull knife tears the tape and frays it instead of cutting it.

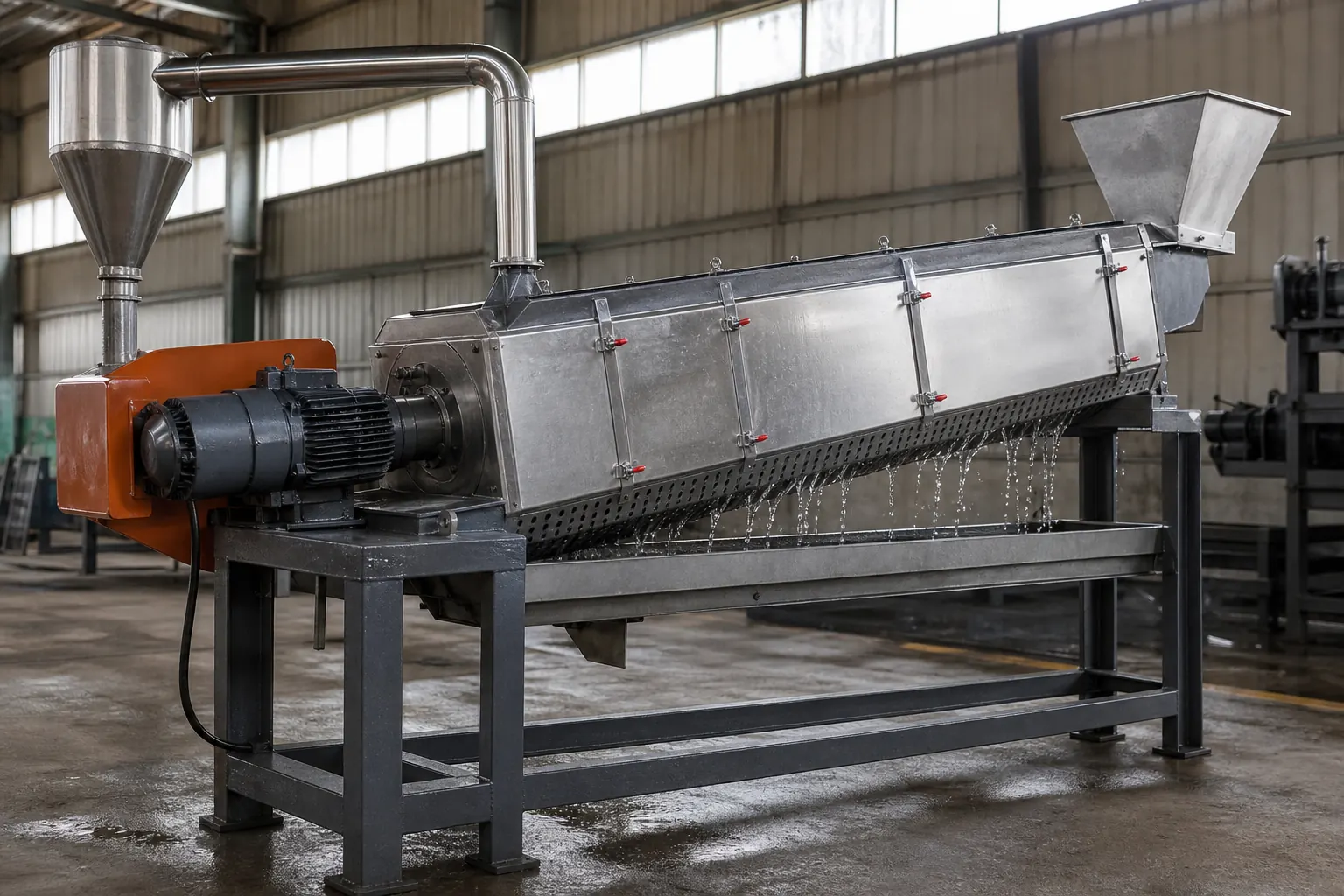

Downstream, a high-speed friction washer is doing double duty on this stream: it removes surface soil and it liberates the dust that is bound into the weave, so that the wash water can carry it away rather than the pellet. These run a 350–650 mm rotor at 720–1,200 rpm on a 20–30° incline, and on woven material the incline matters as much as the speed — it decides how long the fibre stays in the scrubbing zone.

What one wrap event costs, counted properly. Filament winding onto a dryer spindle or a conveyor shaft is rarely dramatic; it tightens gradually until something binds. The stop itself is short, but it is an unplanned stop on a wet line, which means the wash circuit keeps running while nothing is being produced, the material already in the tanks sits and soaks, and somebody has to cut hardened filament off a shaft with a knife before restarting. Plants that log this discover the same pattern — wrap events cluster right after a knife change is overdue, because a dull knife frays tape instead of cutting it. Sharpening intervals on this material are a production decision, not a maintenance one.

Source 2 — Stitching, Metal and Labels

The second source is everything attached to the bag by somebody else.

Stitching thread at the mouth and base seam is frequently a different polymer from the bag — nylon and polyester are both common. Neither melts with PP. Both end up as unmelted inclusions and as load on the melt filter, and neither is removable by washing. On heavily stitched bags this alone can decide whether the pellet is sold as prime-adjacent or as filler grade.

Metal arrives as staples, wire ties, bag clips and whatever was swept up with the bags. It has two separate consequences and you have to plan for both: metal in the cutting chamber damages knives, and metal that survives into the melt damages screws and screen changers. Metal detection therefore belongs before size reduction, not after it — by the time it is in the flake, the cost has already been incurred.

Labels, ink and paper are the slow leak. Woven bags are printed heavily, and printing ink does not wash off. It carries into the melt and shows up as a grey or brown pellet, which is a permanent price ceiling rather than a defect. Paper labels and glued paper valves break up into fibre that survives washing and appears as specks in the strand.

There is no machine that fixes ink. There is only feedstock selection: heavily printed bags make a darker pellet, and the sensible response is to price them accordingly and keep them out of any batch sold on colour. The same commercial logic applies across recovered material — the article on how buyers grade and test plastic regrind covers what they check before they pay.

Source 3 — Lamination and Liners

The third source is built into the bag deliberately, and it is the hardest of the three.

Many woven sacks are laminated with a BOPP film on the outer face to carry high-quality print and to keep moisture out. Many others contain a separate PE inner liner for the same reason. Both are doing a legitimate job for the original product, and both make the bag a multi-material item.

A laminated bag cannot be de-laminated mechanically. The BOPP layer is bonded to the weave, so it goes through the whole line attached to it and arrives in the extruder as a second polymer with different melt behaviour. A loose PE liner is better news, because it can physically be separated — but only if somebody or something takes it out, and after cutting, liner and weave are the same size and the same colour.

The practical position is worth stating plainly: laminated and lined bags are a lower grade of feedstock, and the response is intake control and pricing rather than an extra machine. Buyers who accept mixed bales of laminated and unlaminated sacks at one price are absorbing a quality problem that never becomes visible until the pellet is tested.

Why Sink-Float Cannot Sort a PP/PE Mixture

The instinctive answer to a PE liner in a PP stream is a density tank. It does not work, and the reason is worth understanding because it recurs across every polyolefin stream.

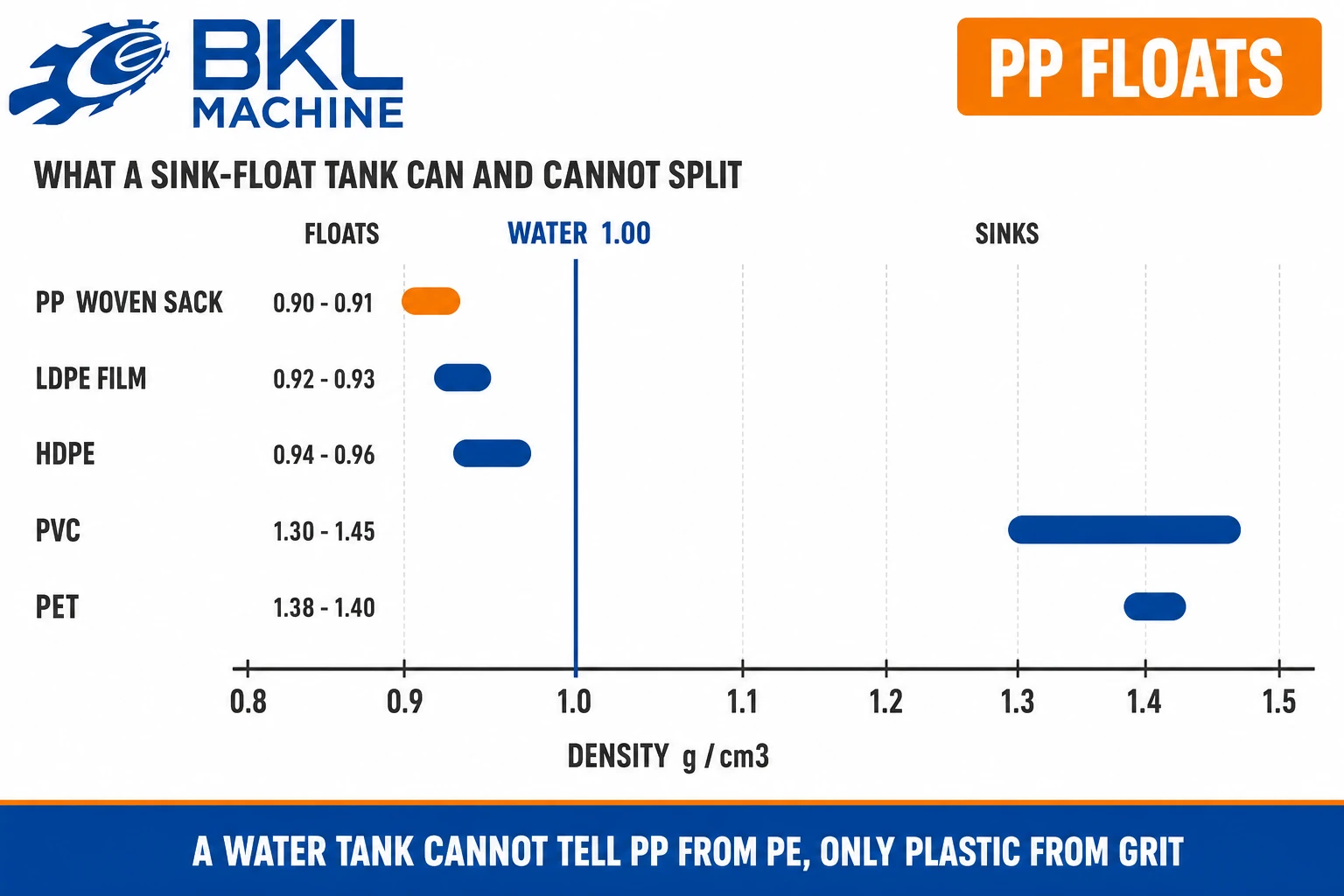

A sink-float separation tank sorts by whether material is heavier or lighter than water, and the polyolefins are packed into a narrow band right below it. Woven PP sits at 0.90–0.91 g/cm³, LDPE at 0.92–0.93 and HDPE at 0.94–0.96. All three float, they leave together on the same surface, and a gap of 0.03 is far too small for a water tank to resolve.

So the tank remains valuable — it removes sand, grit, stones, set cement, metal fines, glass and PET fragments at 1.38–1.40, which on post-consumer sacks is a substantial load — but it is blind to exactly the contamination that a woven bag is most likely to carry. This is the same blind spot that governs HDPE recycling, where PP caps float alongside the HDPE, and LDPE film recycling, where PP twine floats alongside the film. Three different streams, one shared limitation.

When density does not work, the options are all upstream: manual sorting of laminated from unlaminated bales, near-infrared sorting where volume justifies the capital, and above all sourcing discipline. Guidance from the Association of Plastic Recyclers design guide is useful reading in reverse here: what it asks designers to avoid is a fair list of what will otherwise arrive on your sorting belt.

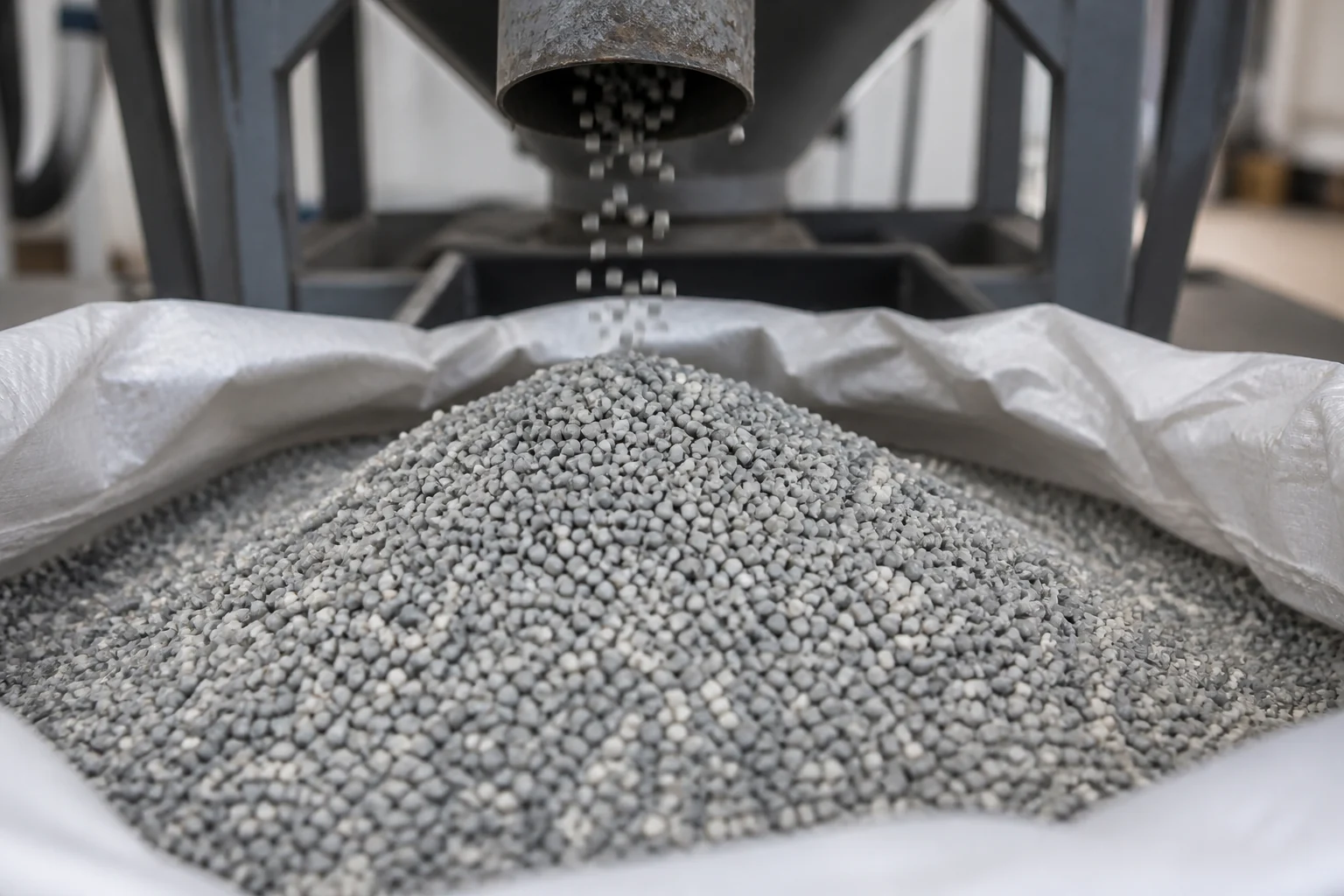

Getting to a Stable Pellet

Once the bag has been cut and washed, the remaining problem is that woven PP is soft, low in bulk density and still holding water in the weave.

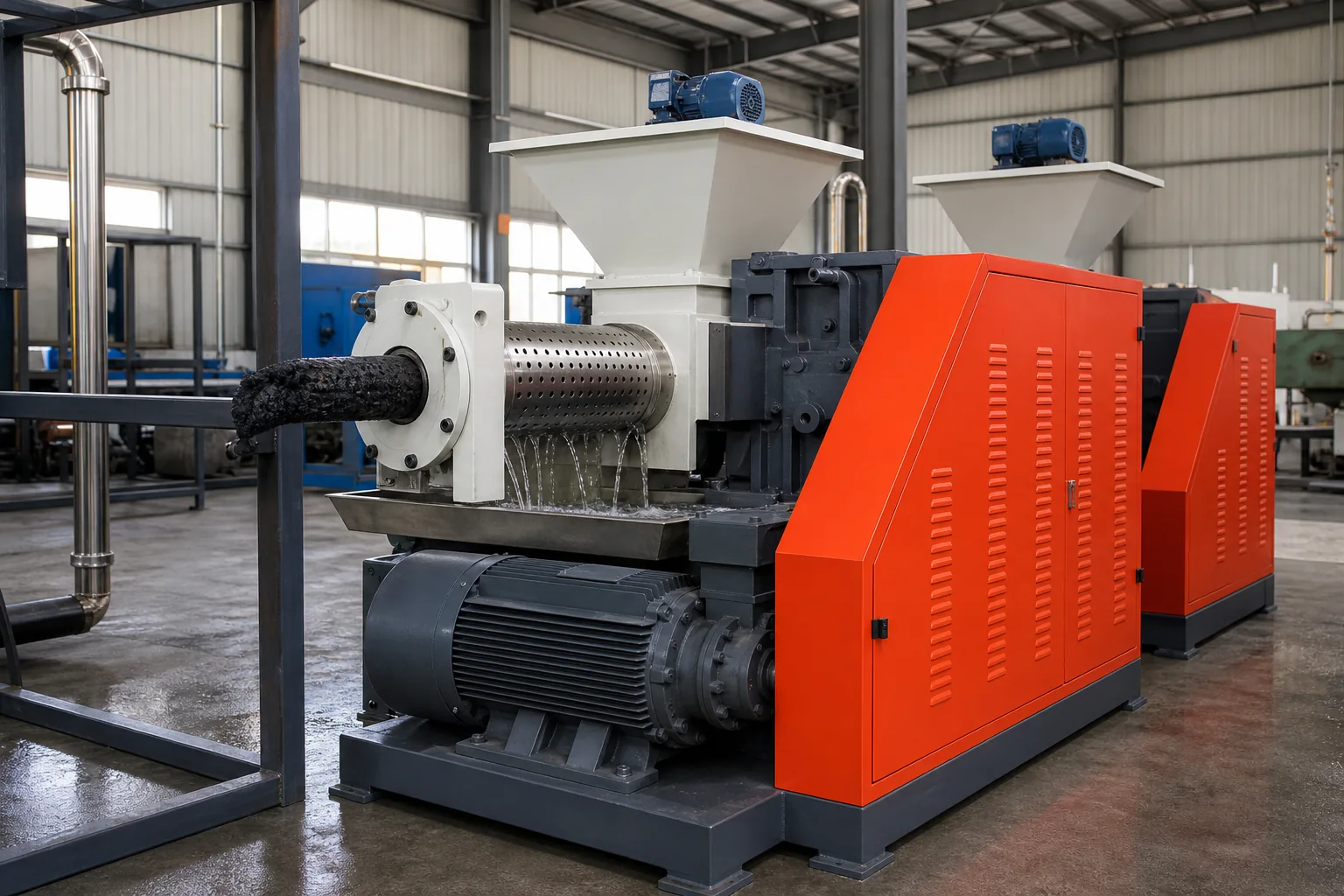

Water first. Cut woven material holds water the way film does, in the folds and between the tapes, so a centrifugal dryer alone will not get there. A squeezer densifier forces water out under pressure and removes 95–97% of it, handing over a compacted material at roughly 3–5% moisture. A centrifugal dryer at 1,500 rpm then brings it to 0.5–2% before a hot-air stage finishes below 1%. Water reaching the barrel flashes to steam, and steam is what breaks strands.

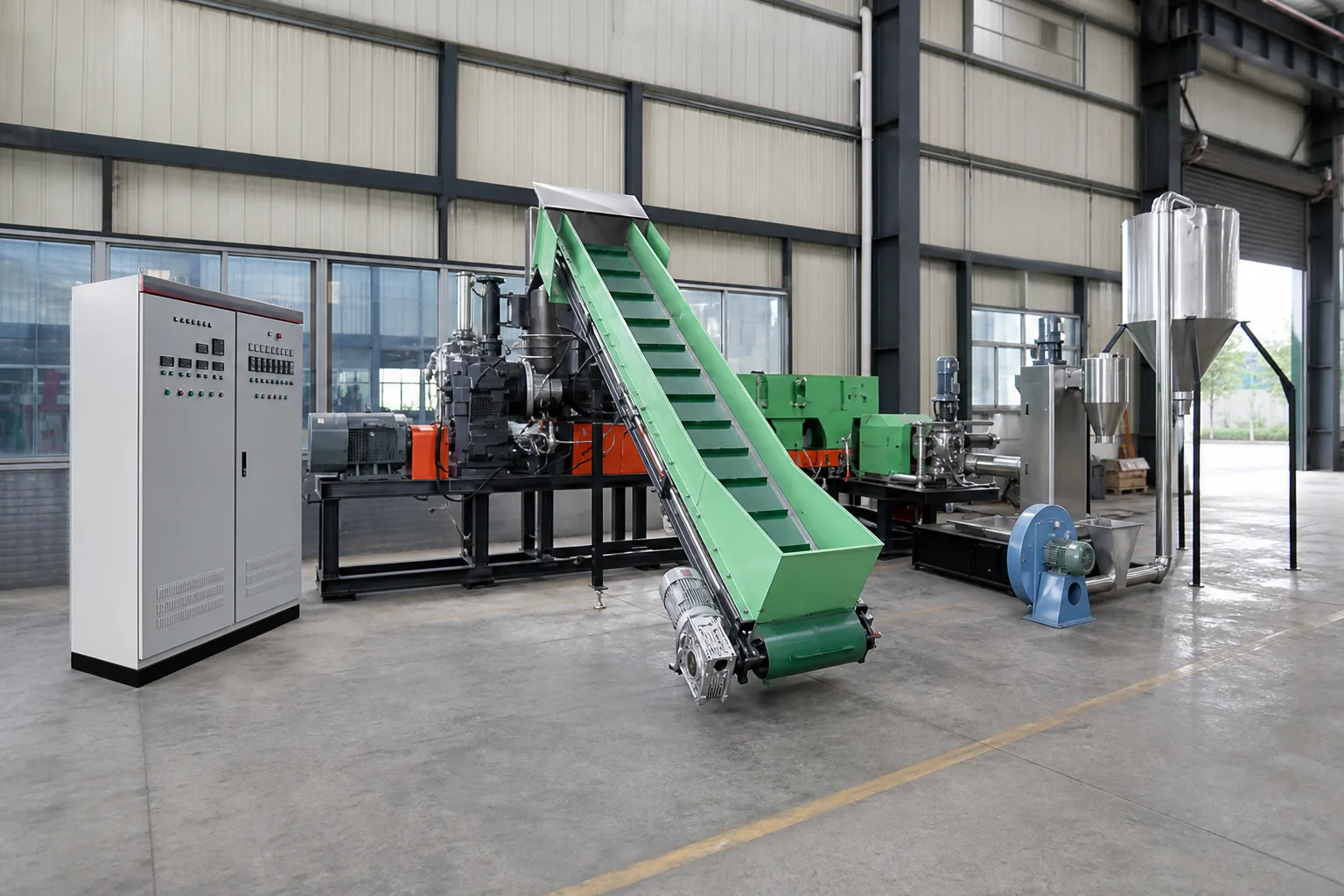

Feeding second. Cut woven material is bulky and will not gravity-feed a screw. A pelletizing line with an integrated compactor for soft plastics densifies and pre-heats the material and force-feeds the extruder, which is what turns erratic output into steady output. The compaction chamber runs 300–1,500 litres across the range, and its size rather than the extruder’s rating is usually what caps a woven line’s real throughput.

Cutting last. Water-ring cutting suits PP well: the pellet is cut at the die face and quenched immediately, which avoids the long strand path where a fluff inclusion or a moisture bubble causes a break. Strand pelletizing is unforgiving on this material for exactly that reason. Either way the melt filter is the component doing the real quality work, because stitching thread, paper fibre and unmelted lamination all have to be stopped there.

What a Woven Line Costs to Run Against a Rigid One

This is the number worth having before committing to the stream, because it is the one an equipment quotation does not show. Soft material and rigid material at the same tonnage are not comparable operations.

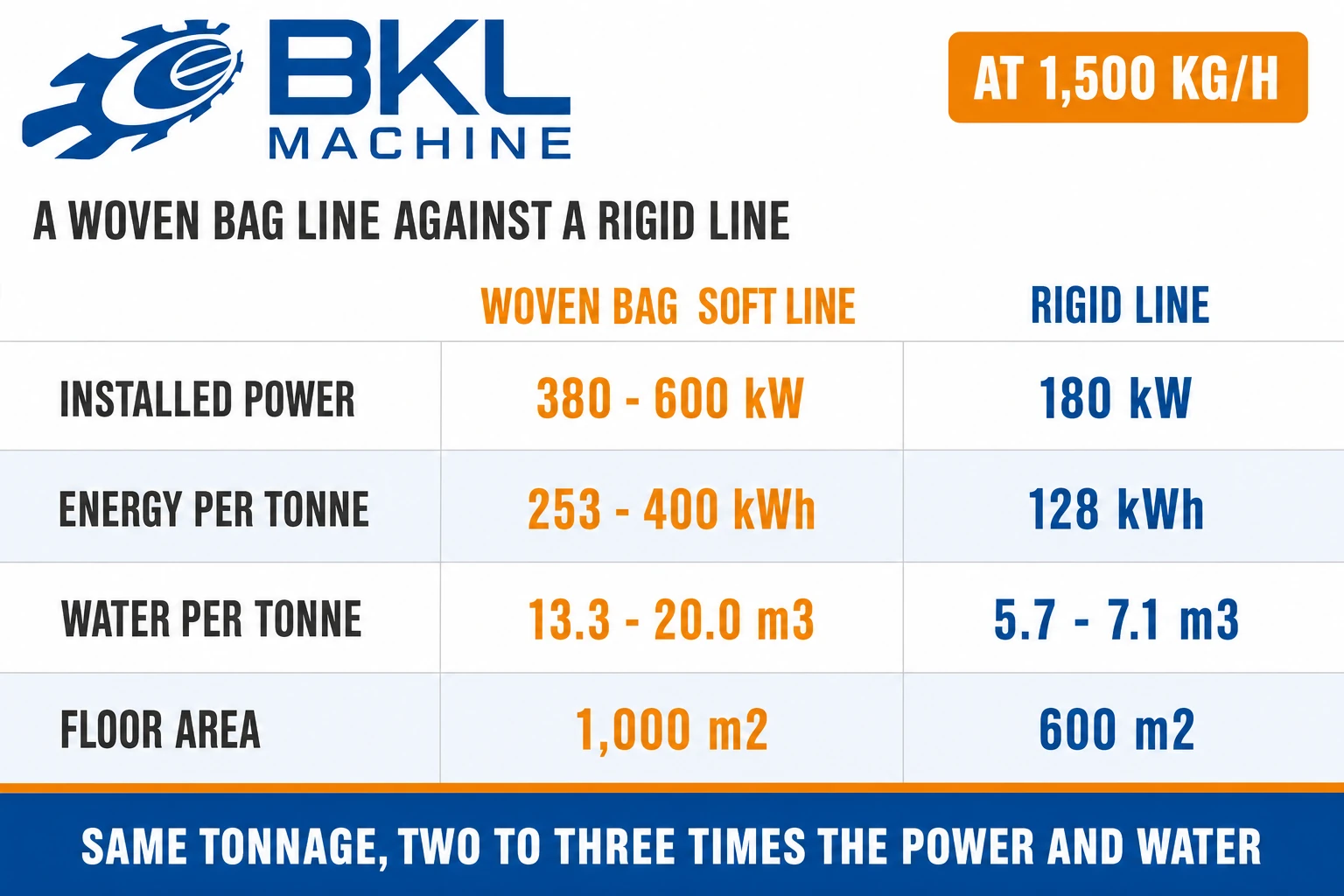

At 1,500 kg/h a soft line carries 380–600 kW installed against 180 kW on a rigid line, which is 253–400 kWh per tonne against 128. Water is 13.3–20.0 m³ per tonne against 5.7–7.1. Floor area is 1,000 m² against 600.

The reason is physical rather than commercial. Woven material has to be squeezed, then hot-air dried, then air-conveyed, and it holds water in the weave the whole way; rigid flake is thrown dry in a centrifuge and moved on a belt. Every one of those extra stages is a motor.

Across the capacity range the soft line looks like this:

Two things to take from that. Energy per tonne improves with scale, but nothing like as steeply as on a rigid line, and it never gets close to rigid figures. Water per tonne barely improves at all — it is still 13.3–20.0 at full size, and it actually peaks in the middle of the range. If water supply or effluent treatment is constrained at your site, woven PP is the wrong stream to scale into, whatever the feedstock costs.

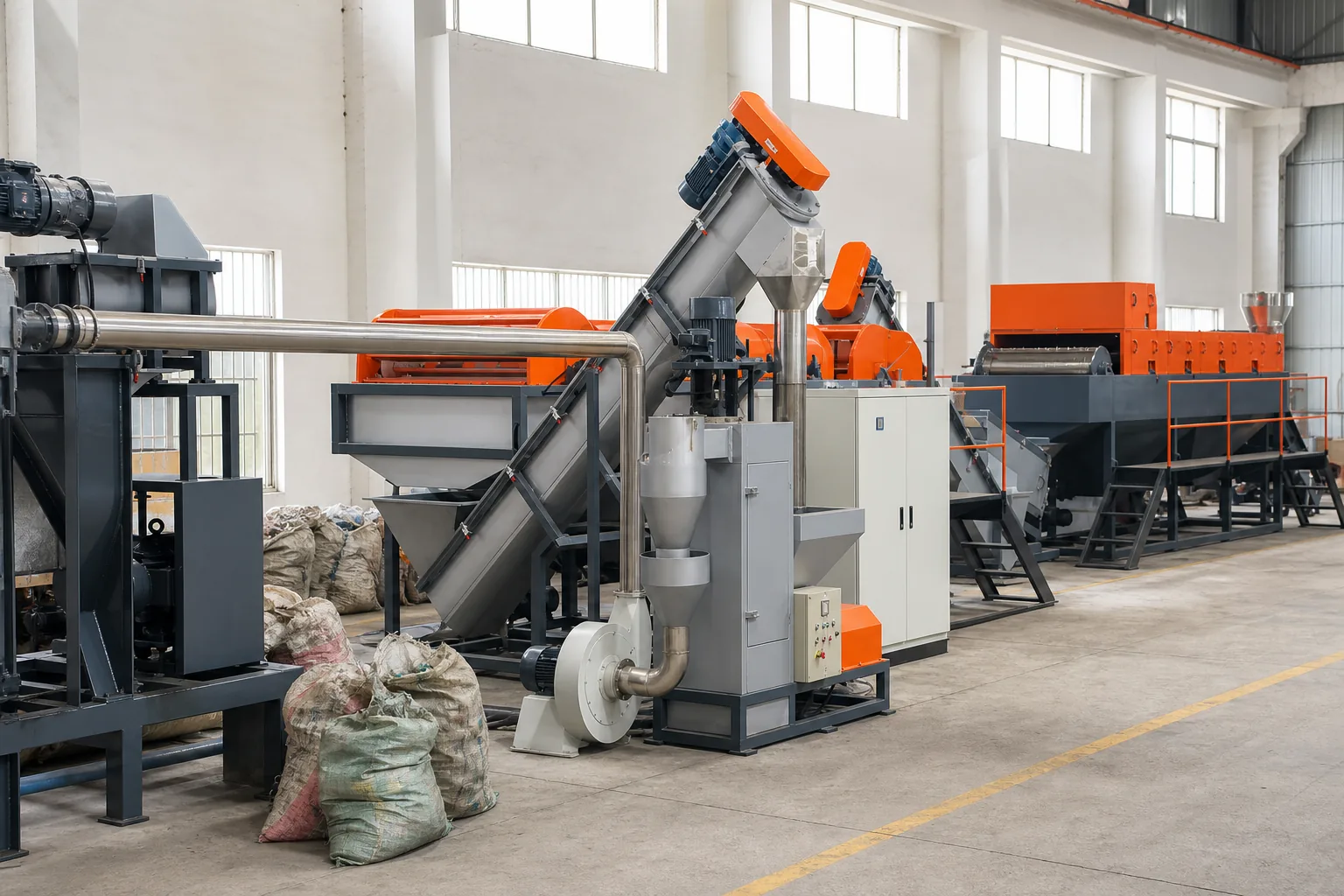

The full sequence — ram-fed shredding, friction washing, sink-float, squeezing, drying and compactor-fed extrusion — is what a washing line for soft plastics is built around, and the rest of the cost layers are in what adds up in plastic recycling plant cost.
