Plastic recycling plant cost is not one number. It is five layers that accumulate: the main machines, the systems that connect them, the work of landing the line on your floor, the utilities and labour it consumes once running, and the wear parts that never appear on the quotation.
That structure matters because two quotations for the same capacity routinely differ by three times, and a buyer comparing only the headline figure cannot tell why. The gap is rarely margin. Far more often the two documents cover different layers, and the cheaper one has left two or three of them for you to discover later.
What follows is the structure rather than the prices. Quotations move with configuration, steel prices and exchange rates, so any figure published here would be wrong within months. The layers and the per-tonne consumption behind them do not move, and they are what let you read a quotation properly.

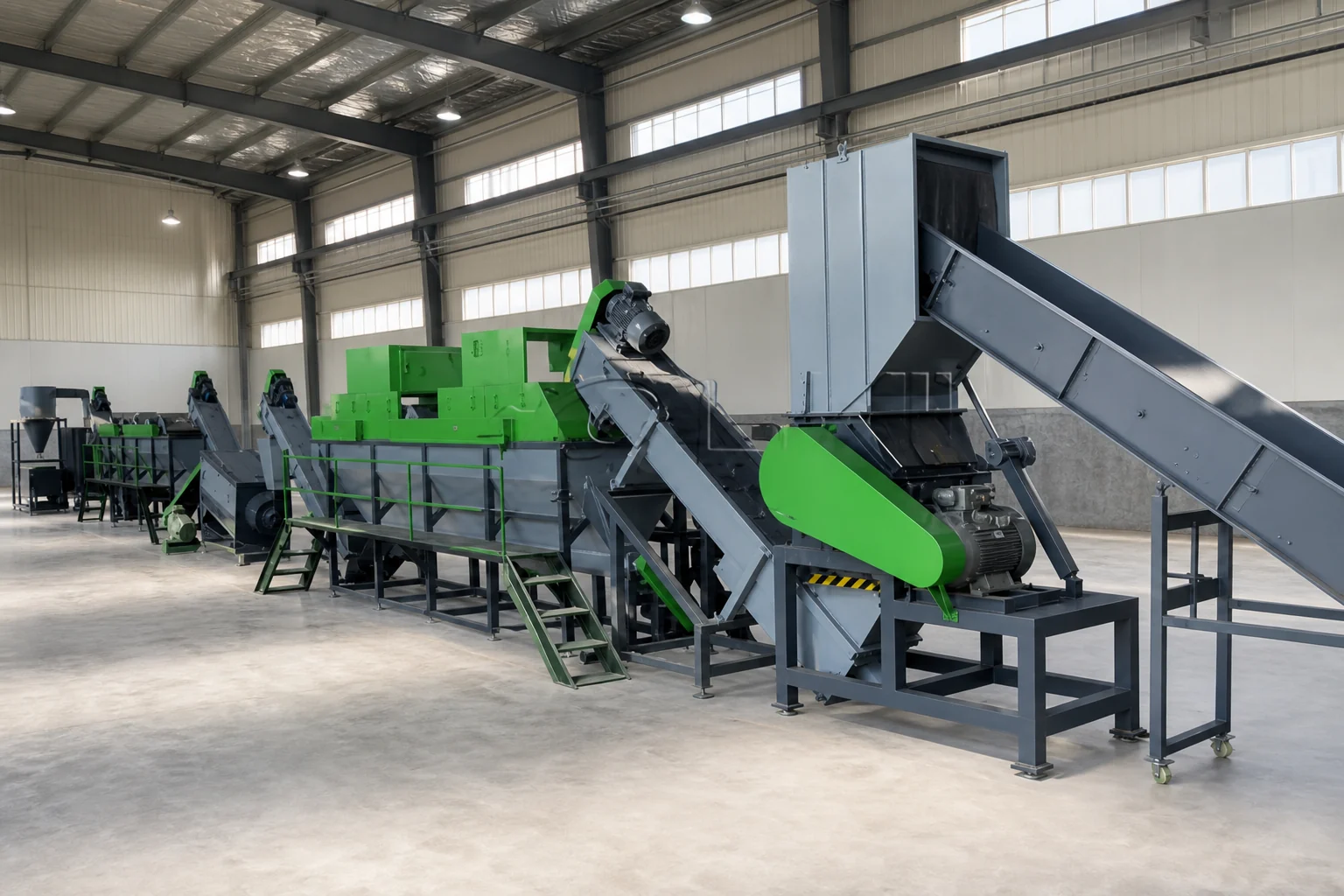

Layer 1 — The Machines That Actually Process Material
This is the layer everyone compares, and the only one most quotations describe in detail. It is also where the machine list is decided by your material and target product rather than by budget. This article stays at the plant level; what each machine in the line costs is set out separately, machine by machine, with the parameter ranges behind each figure.
Size reduction comes first, and it is either one stage or two. Baled or bulky input needs a plastic shredder before anything else can handle it; loose bottles and thin-wall containers can go straight into a heavy-duty crusher that takes them down to 12–20 mm flake. Drums, pallets and pipe almost always need both. Whether your quotation has one machine here or two is the single biggest structural difference between two otherwise similar documents.
Washing is a line, not a machine. A plastic recycling washing line is a sequence of tanks, screws and friction stages, and how many of them you need depends entirely on what is stuck to the material. Post-industrial offcuts may need very little. Post-consumer film with soil and agricultural residue needs pre-wash, friction washing and a hot stage at 85–95 °C with 1–3% alkali. That decision alone changes both the equipment list and the running cost, which is why it is worth settling whether you actually need hot washing before asking anyone to quote.

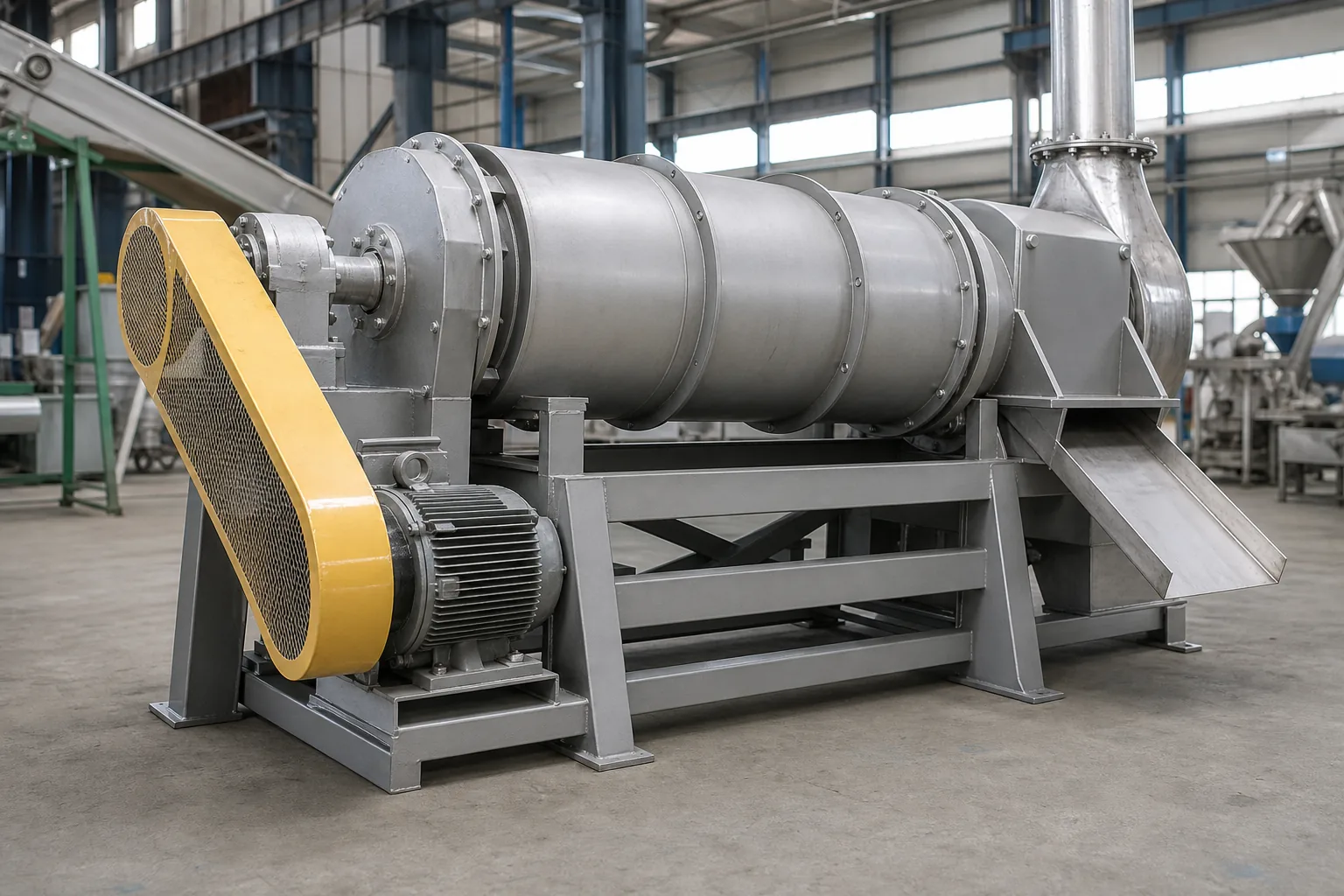

Drying is where cheap quotations get thin. A centrifugal dryer running at 1500 rpm brings moisture down to 0.5–2%, and a hot-air stage finishes it below 1%. Undersizing this section is the easiest way to make a quotation look competitive, because the machine still exists on the list and the shortfall only shows up when your flake fails a buyer’s moisture check.
Pelletizing is optional and it is a commercial decision. If you are selling washed flake, the line stops at the dryer. If you are selling pellets, a pelletizing machine adds an extruder, a melt filter and a cutting system to the list. Both are legitimate business models, and which one you choose should come from your buyers rather than from the equipment catalogue.
Layer 2 — The Systems That Connect the Machines

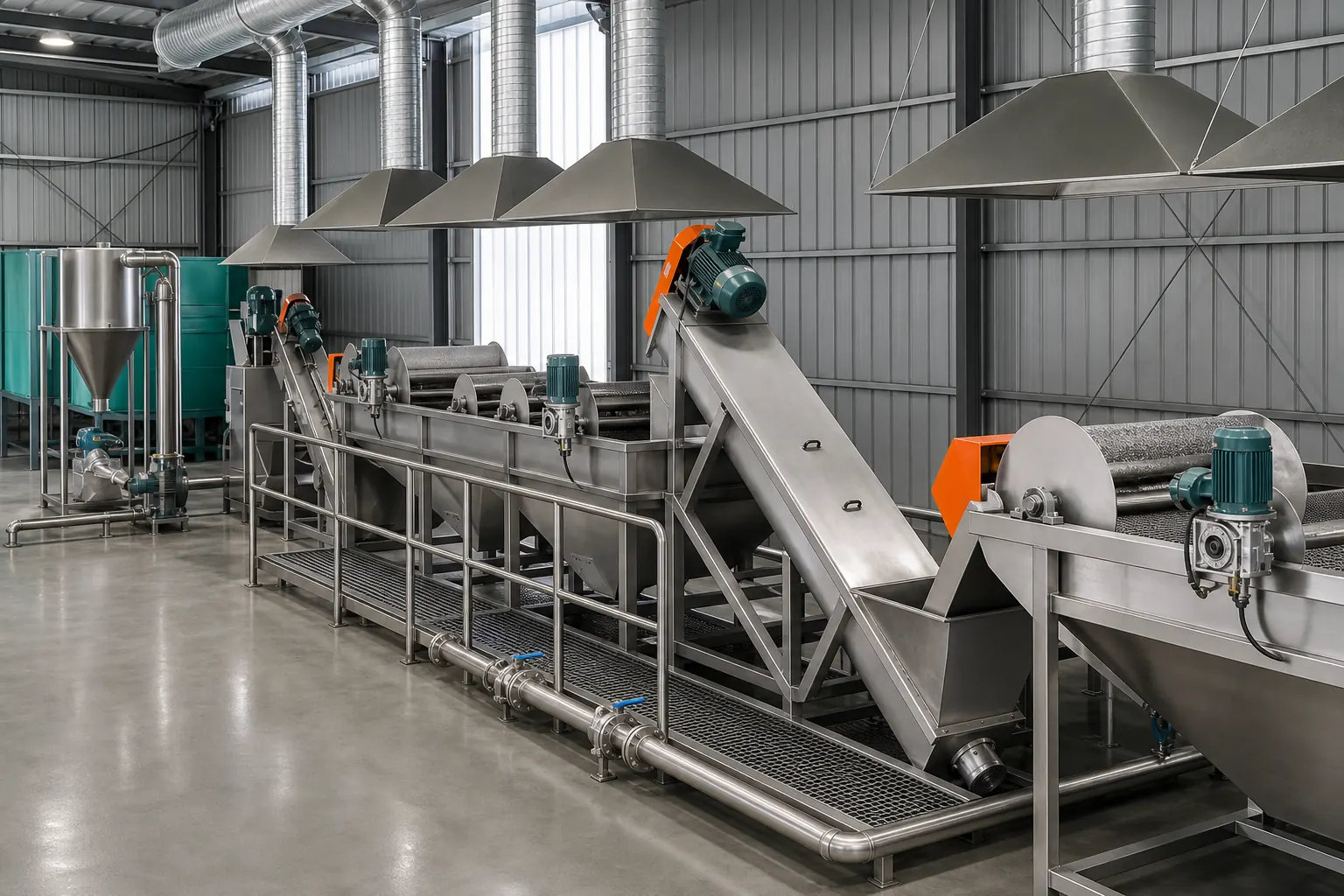

Machines standing next to each other are not a line. Between them sit belt and screw conveyors, buffer silos, the water circulation loop, the electrical control cabinet, and the steel platforms and walkways an operator needs to reach a hopper or clear a jam.
None of this is glamorous and all of it is load-bearing. A washing line consumes water continuously, so whether that water is discharged or recirculated through a treatment loop changes both the capital list and the monthly bill. A control cabinet built around a full PLC with interlocks costs more than a bank of contactors and prevents the class of accident where one machine keeps feeding while the next one has stopped.
The auxiliary equipment in this layer is also where the genuinely optional items live. A friction washer earns its place on heavily contaminated input and is close to redundant on clean post-industrial scrap. Knowing which your material needs is the difference between a lean line and an expensive one, and the article on what machines a recycling line actually needs separates the compulsory from the conditional.

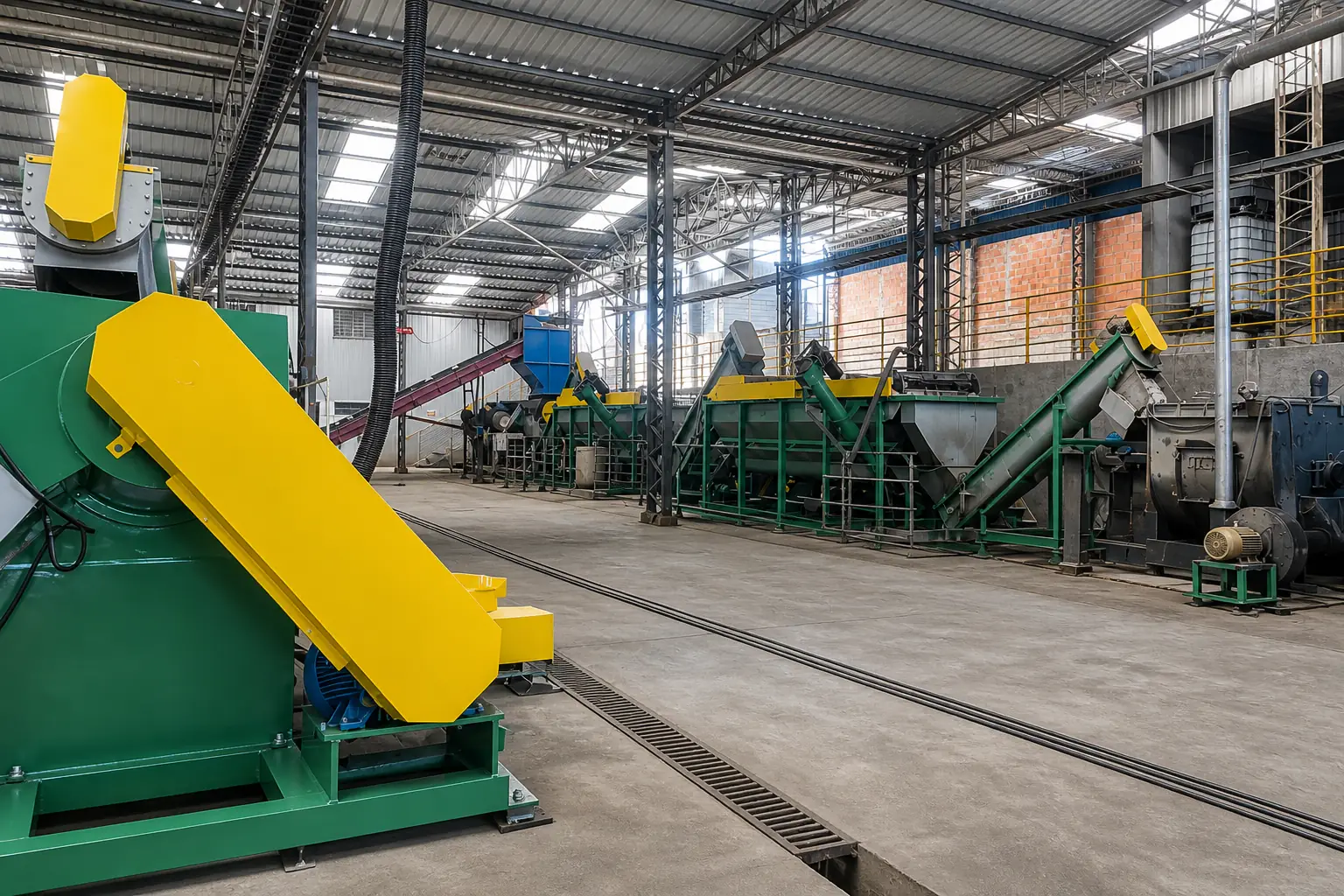

Layer 3 — Getting the Line Onto Your Floor
A line leaves the factory in containers and arrives as a pile of steel. Between those two states sits a layer of cost that almost never appears in the machine quotation:
Sea freight and the number of containers the line occupies. Import duty and customs clearance. Unloading and craning on site. A concrete floor that takes the static load and the vibration, with drainage falls under the washing section. Anchor bolts and grouting. Cable runs from your distribution board to the control cabinet. Plumbing to and from the water loop. And the travel and time of the engineers who commission the line and train your operators.
Floor area is the constraint that catches people who have already signed a lease. A rigid line runs from about 300 m² at 200–300 kg/h to 800 m² at 1,800–2,000. A soft line at comparable tonnage wants more at every tier — 350 m² at the bottom and 1,000 m² at 1,500 kg/h — because film occupies far more volume per tonne and needs squeezing and air conveying that rigid flake does not. Those figures are for the line itself. Bale storage, finished-goods storage and a turning circle for a forklift are additional, and in practice they are often the larger number. A building is considerably harder to change than a machine list, so this belongs in the first conversation rather than the last.
Some suppliers include commissioning, some quote it separately, some rely on video support. All three are defensible; what is not is comparing a quotation that includes it against one that does not and calling the difference a discount. The first thing to check is the scope line, not the price line.
Layer 4 — What the Line Consumes Once It Runs
This is the layer that decides payback, and it is the one almost no supplier publishes. It is also the layer where real numbers exist, because consumption is physics rather than pricing.
| Line capacity | Installed power | Electricity per tonne | Operators | Labour per tonne | Water per tonne |
|---|---|---|---|---|---|
| 500 kg/h | 150 kW | 300 kWh | 4–6 | 8–12 person-hours | 8–10 m³ |
| 1,000 kg/h | 250 kW | 250 kWh | 6–8 | 6–8 person-hours | 8–10 m³ |
| 3,000 kg/h | 500 kW | 167 kWh | 12–16 | 4–5.3 person-hours | 6.7–10 m³ |

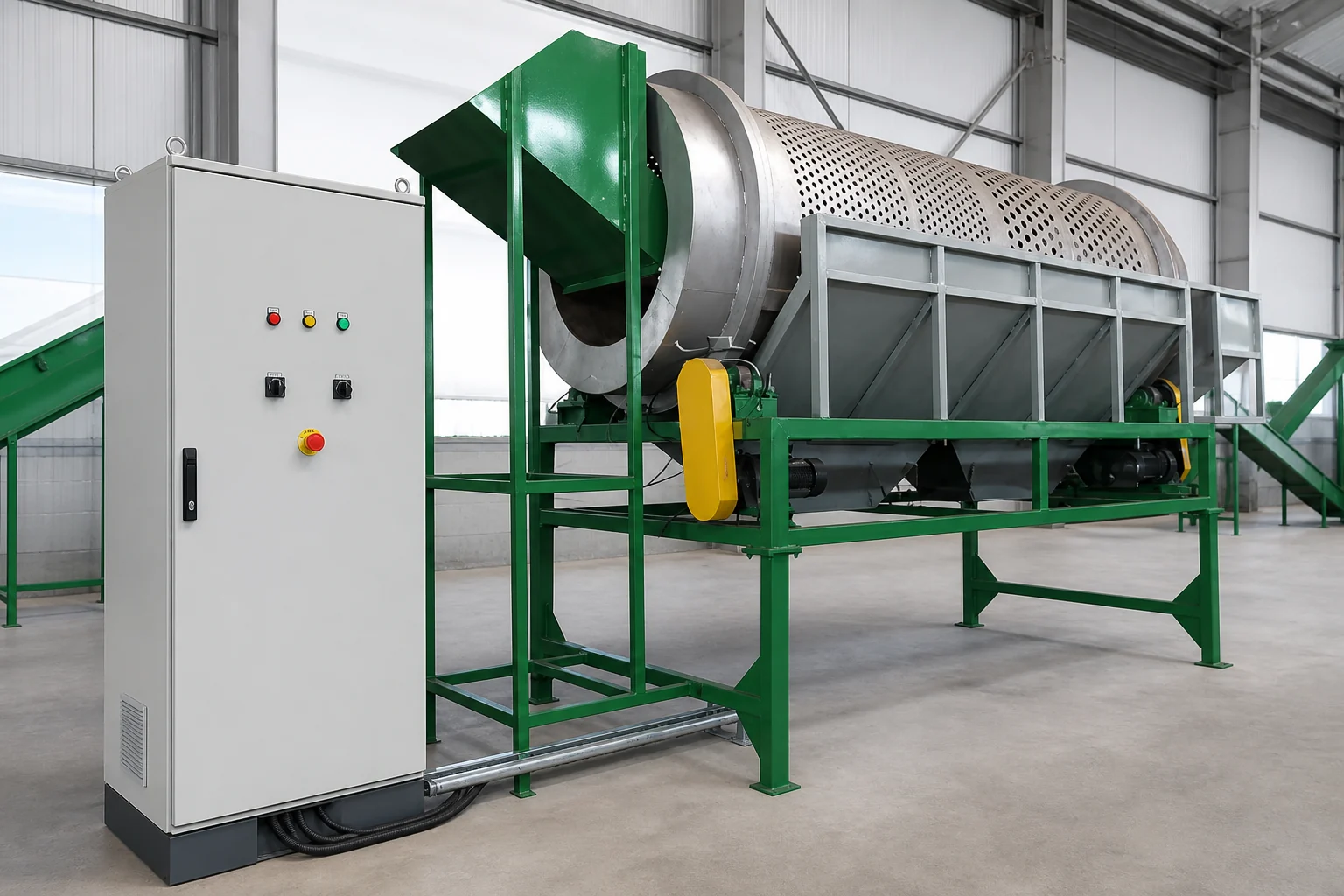

Two notes before these go into a spreadsheet. Installed power is nameplate — the sum of every motor on the line — and actual running draw is usually around 60–70% of it, because not every motor is loaded at once. These are also washing-line figures, so an extrusion stage adds its own load on top.
The pattern in that table is the most useful thing on this page. Scaling from 500 to 3,000 kg/h cuts electricity per tonne by 44% and labour per tonne by 55%. The biggest cost lever is line size, not machine brand. A small line bought to reduce risk is a rational choice, but it should be made knowing that every tonne through it carries roughly twice the energy cost and twice the labour cost of a tonne through a large one.
Per-tonne consumption is also more useful than any cost figure a supplier could hand you: take your own electricity rate, wage and water price, and the arithmetic is yours in a minute.

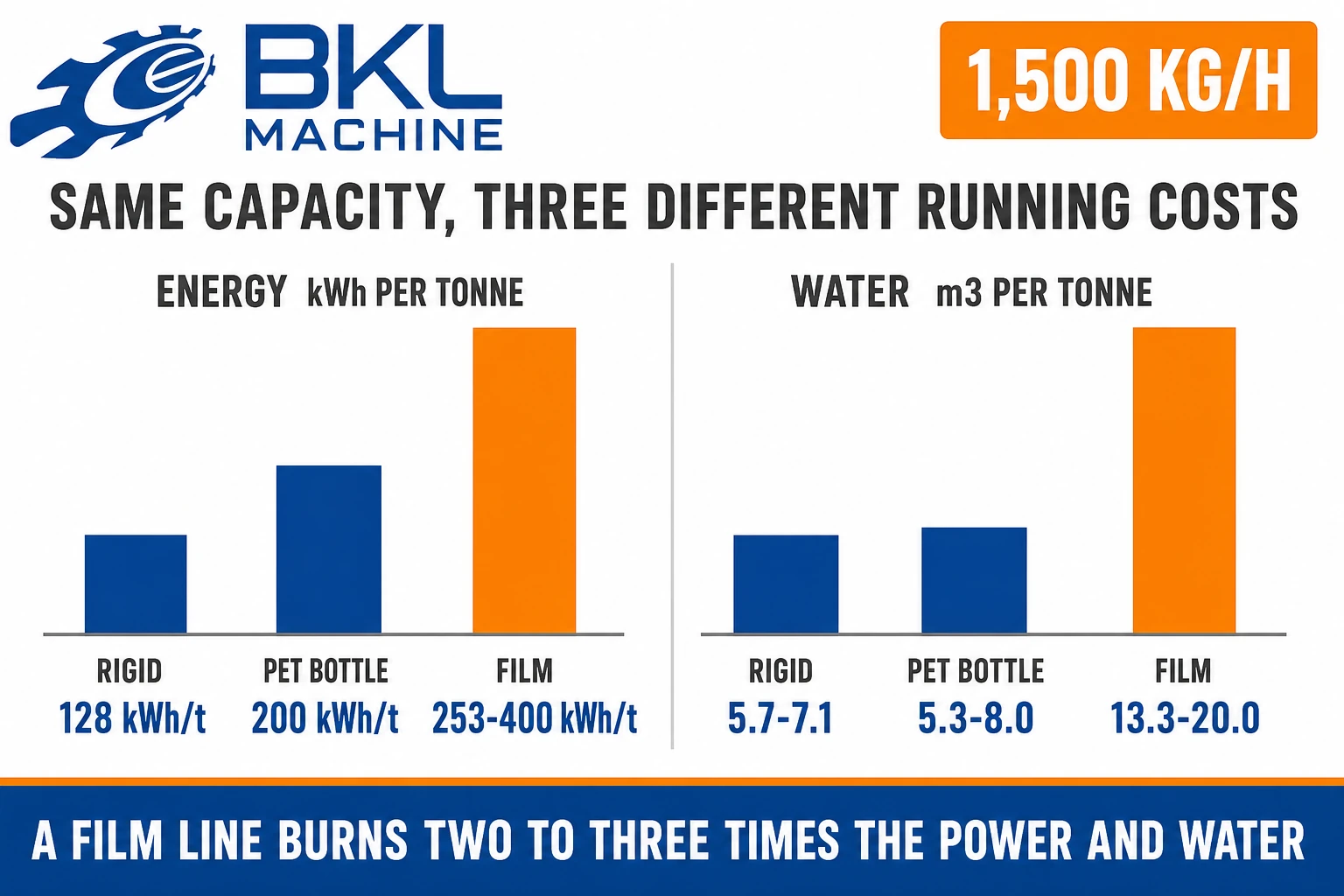

The same capacity, three different running costs
The table above is a PET line. Run the same exercise across the three material classes at a common throughput and the spread is wider than anything inside a single table — wide enough that the choice of stream matters more to your operating cost than the choice of supplier does.
| At about 1,500 kg/h | Installed power | kWh per tonne | Water, m³ per tonne | People per t/h |
|---|---|---|---|---|
| Rigid drums and crates | 180 kW | 128 | 5.7–7.1 | 2.1–3.6 |
| Baled PET bottles | 300 kW | 200 | 5.3–8.0 | 5.3–6.7 |
| Film and woven bags | 380–600 kW | 253–400 | 13.3–20.0 | 4.0–5.3 |
A film line draws two to three times the power of a rigid line at the same tonnage — 128 against 253–400 kWh — because film has to be squeezed, hot-air dried and air-conveyed where rigid flake is thrown dry in a centrifuge and moved on a belt. It also uses roughly three times the water, 5.7–7.1 against 13.3–20.0 m³. In a water-scarce region that one row can end a project regardless of the machine price. And PET is the most labour-dense of the three, needing 5.3–6.7 people per tonne per hour against 2.1–3.6 on rigid, with the whole difference standing at the sorting belt.
Where scaling up stops paying back
The 44% energy saving between 500 and 3,000 kg/h is real, but it is not evenly distributed, and assuming it continues is how lines get over-sized.

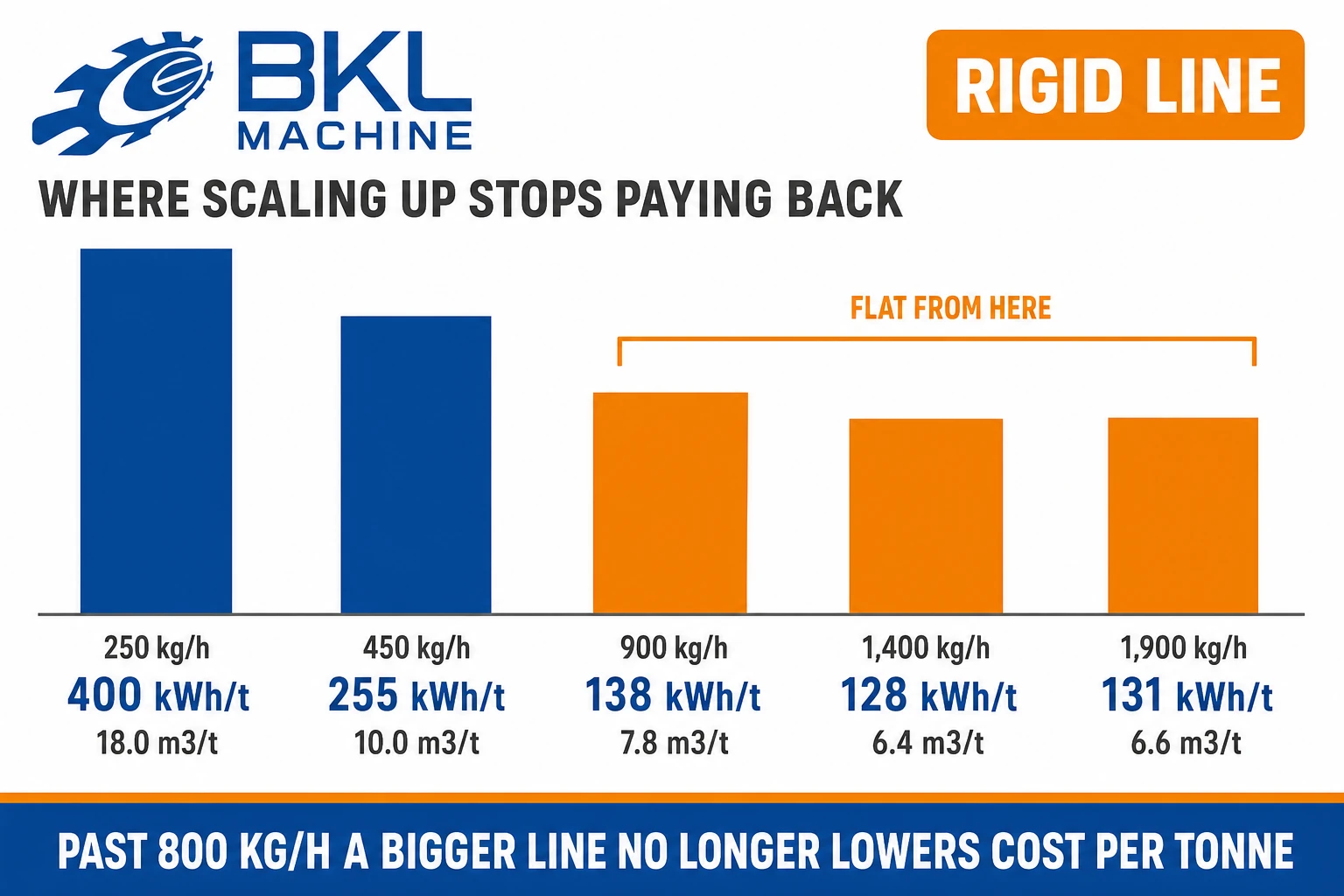

Take a rigid line across its full range: 400 kWh per tonne at 250 kg/h, 255 at 450, 138 at 900, then 128 at 1,400 and back up to 131 at 1,900. Almost the entire gain happens below 900 kg/h. Past that point a bigger line costs more to buy, occupies more floor and produces a tonne for the same energy.
Water behaves worse. Over the same range it moves from 16–20 down to 5.3–7.9 m³ per tonne, and most of that improvement is the smallest tier having been over-specified rather than the large tier being efficient. All three material classes flatten on water by mid-range. Planning to dilute a water bill by building bigger does not work.
The practical consequence for a budget is that the tier boundaries are not evenly valuable. On a PET line the step from 1,500 to 2,000 kg/h holds energy at 200 kWh per tonne on both sides; on a rigid line the step from 1,400 to 1,900 is slightly worse per tonne than staying put. Those tiers exist for plants that need the output, not for plants chasing unit cost.
Layer 5 — The Costs That Never Appear in a Quotation
Everything above is at least visible. This layer is not, and it is where operators are most often surprised.
Blades and knives. Rotor and stator knives wear against the material, and the dominant variable is not the plastic but the sand and grit that came in with it. Agricultural film is far harder on tooling than clean bottle bales. Blades can be reground several times before replacement, so the real cost is a schedule rather than a purchase.
Screens and melt filters. Crusher screens define your particle size and wear out; extrusion screen packs load up with contamination and have to be changed on a cycle set by how dirty your input is.
The production you lose while changing them. A blade change is not the price of the blade; it is a line stopped, and on a 3,000 kg/h line that is three tonnes an hour not made.
Water treatment chemicals and sludge disposal, which scale with contamination rather than with throughput.
Electrical supply upgrade. A 500 kW installed line is a significant new load. If your incoming supply cannot take it, the transformer and utility connection are a project with a lead time of their own, and they belong in the budget from week one.
Why Two Quotations for the Same Capacity Differ by Three Times
Put the layers together and the 3× gap stops being mysterious. These are the variables that move it, and each one is worth asking about directly:
| Variable | Effect on the quotation | Effect afterwards |
|---|---|---|
| Extra sorting or pre-wash stages for contaminated input | Higher | Protects your output grade |
| Steel thickness of tanks and frames | Higher | Decides service life, not day-one performance |
| Blade steel grade (D2, SKD11, powder steel) | Higher | Lower cost per tonne once amortised |
| Full PLC automation versus semi-automatic control | Higher | Fewer operators per shift |
| Closed-loop water treatment versus discharge | Higher | Lower water consumption and easier compliance |
| Drying capacity relative to throughput | Often where a cheap quote is cheap | Decides whether you meet a moisture spec |
| Commissioning, training and spare parts included | Higher | Decides how long the first three months take |
| Voltage standard and export certification | Slightly higher | Decides whether it can be legally installed |
Read a quotation against that list and most of the difference resolves itself. A line that is cheaper on every row is not a bargain; it is a different specification wearing the same capacity label.
Cost is only half the investment question. The other half is whether the output has somewhere to go, which is why it is worth reading where recycled granules and flake are actually sold and how a recycling business is staged before committing capital. Bodies such as the Association of Plastic Recyclers publish the design and quality guidance your buyers will quote at you, and the US EPA figures on plastics recovery show how much material is actually in circulation in a given market.
Frequently Asked Questions
How much does a plastic recycling machine cost?
It depends on the material, the capacity, how many process stages that material needs and how much of the line is automated. A responsible quotation is built backwards from your waste stream and target output, not read off a list. What you can pin down beforehand is which of the five layers above your project needs, and which of them the quotation in front of you covers.
What hidden costs should I check before ordering a line?
Six recur: electrical supply upgrade, water treatment and sludge disposal, foundation and floor drainage work, blade regrinding and replacement, screen and melt filter changes, and the production lost during those changes. None of them appear on a machine quotation, and together they are usually the difference between a payback projection and what actually happens.
How much electricity does a plastic recycling line use per tonne?
For a washing line, roughly 300 kWh per tonne at 500 kg/h and about 167 kWh per tonne at 3,000 kg/h, derived from installed power of 150 kW and 500 kW. Actual draw runs at around 60–70% of nameplate because motors are not all fully loaded at once, and an extrusion stage adds its own consumption on top.
Is a larger line always cheaper to run per tonne?
Per tonne, yes, and by a wide margin: energy falls about 44% and labour about 55% going from 500 to 3,000 kg/h. Whether that makes it the right purchase is a separate question, because a large line only reaches those numbers if it is fed. A line running at half capacity because feedstock supply is unreliable loses the advantage immediately.
Why do film and bottle lines of the same capacity cost different amounts?
Because they are different machine lists. Film arrives light, bulky and dirty, so it needs pre-washing, a soft plastics washing line and mechanical squeezing before drying, and it occupies far more volume per tonne. Rigid material is denser and cleaner, so a rigid plastics washing line can be shorter. Same tonnes per hour, different plant.
What should I send a supplier to get quotations I can actually compare?
The material and where it comes from, photographs of the bales including the dirty ones, an honest estimate of contamination, your target output and grade, your voltage and frequency, and your available floor area. Send us those details and we will come back with a configuration list, installed power, footprint and manpower, so that what you compare between suppliers is scope rather than a single number.
